Baja Designs XL Linkable Wiring Harness

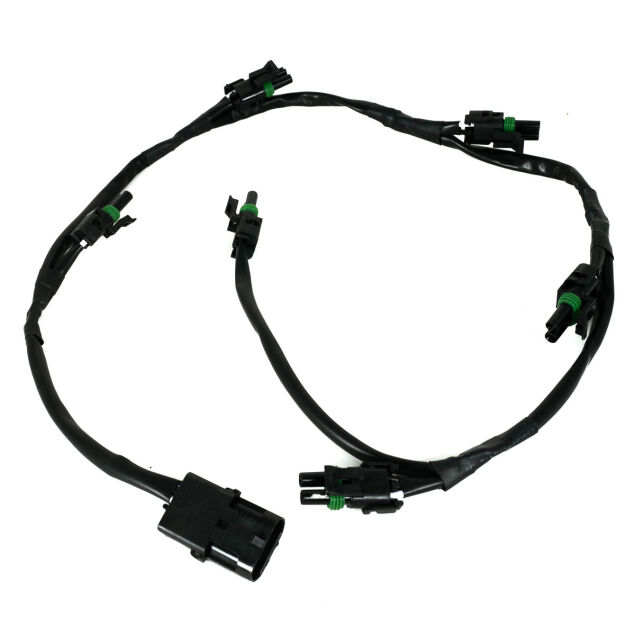

Baja Designs XL Linkable Wiring Harness lets customers match the electrical lead count to the number of XL lights used in a Linkable bar assembly. Harness choices cover three through nine lights, supporting compact arrangements as well as wider roof, bumper, and chase-light builds. The design is intended for XL Sport and XL Pro Linkable systems.

A correctly sized harness keeps each lamp connected through a coordinated branch instead of relying on improvised extensions or unused leads. This helps maintain a clean installation along the linked housing assembly and simplifies routing from the light bar to the main power and control system. Customers can select the plug count that corresponds to the completed bar length.

The three-, four-, five-, and six-light versions support shorter or mid-width XL Linkable configurations. Seven-, eight-, and nine-light harnesses extend the same concept to larger systems, including XL Linkable Pro arrangements. The nine-light option represents the maximum light count identified for this harness family.

The harness does not determine the optical pattern or output of the bar; those characteristics come from the selected XL lights and their arrangement. Its role is to provide the required number of electrical connections so the linked system can be powered as one planned lighting assembly. Matching the harness to the actual lamp count avoids excess connectors and helps preserve a tidy finished appearance.

XL Linkable systems are commonly used where customers want a curved, modular light-bar layout tailored to the available mounting width. A count-specific harness supports that modular approach for off-road trucks, SUVs, UTVs, race vehicles, and overland builds. Electrical load, fuse size, switching, and wire routing still need to be planned around the exact lights and control system.

Whether customers are assembling a compact three-light bar or a full nine-light XL Linkable system, the Baja Designs XL Linkable Wiring Harness delivers the connection count needed for a clean modular build. Now Available at LEER!



---



Features & Specifications

Product Type: XL Linkable auxiliary light wiring harness

Brand: Baja Designs

Fitment: Universal XL Linkable applications

Compatible Series: XL Sport and XL Pro Linkable

Available Light Counts: Three through nine lights

Maximum Supported Count: Nine lights

Functionality:

• Connects the selected number of XL lights in a Linkable assembly
• Supports modular roof, bumper, grille, and chase-light bar layouts
• Provides count-specific leads for a cleaner finished installation
• Works with XL Sport and XL Pro Linkable systems
• Reduces unused branches when the harness matches the final lamp count
• Supports bar widths ranging from compact to full-length arrangements
• Keeps multiple lamp connections organized along the linked mounting system



---



Available Options

The XL Linkable Wiring Harness is available in multiple configurations:

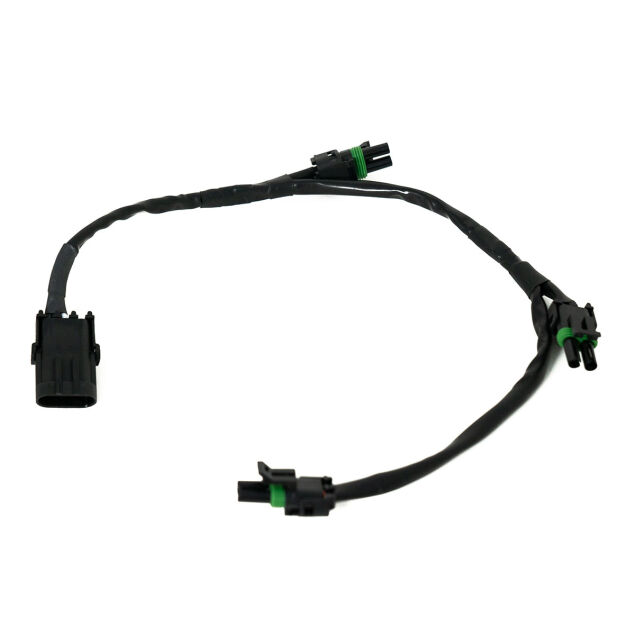

• 3-Light Harness - supports a compact XL Linkable assembly with three light connections

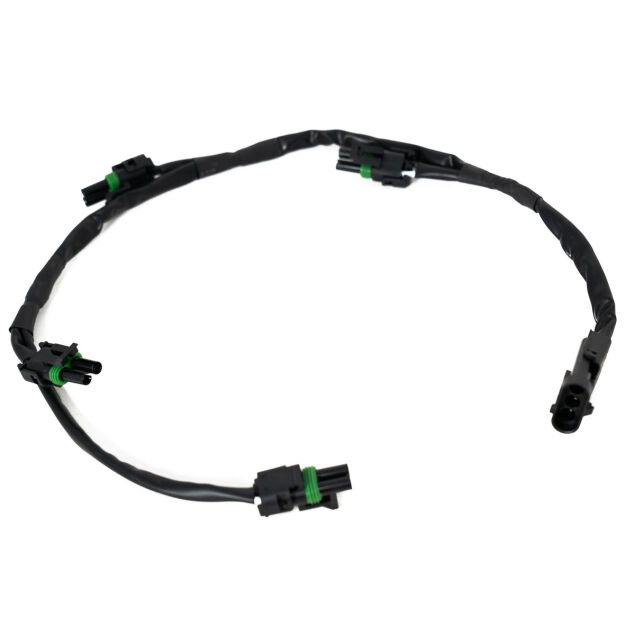

• 4-Light Harness - supports a four-light XL Linkable assembly with a balanced short-bar layout

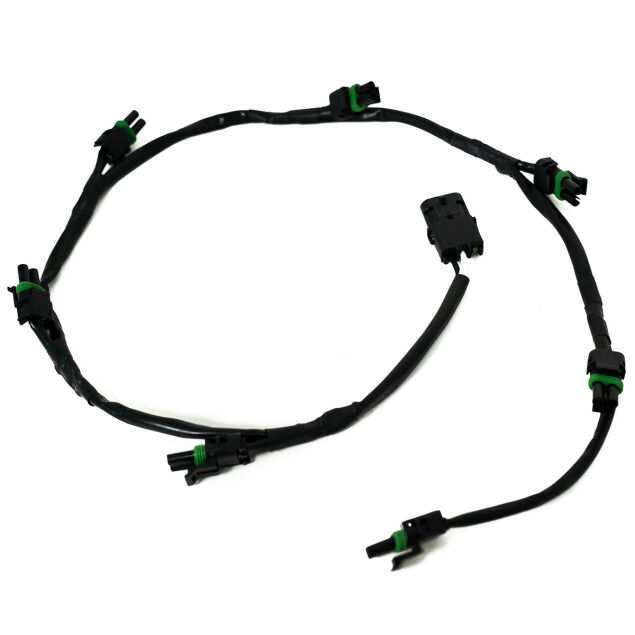

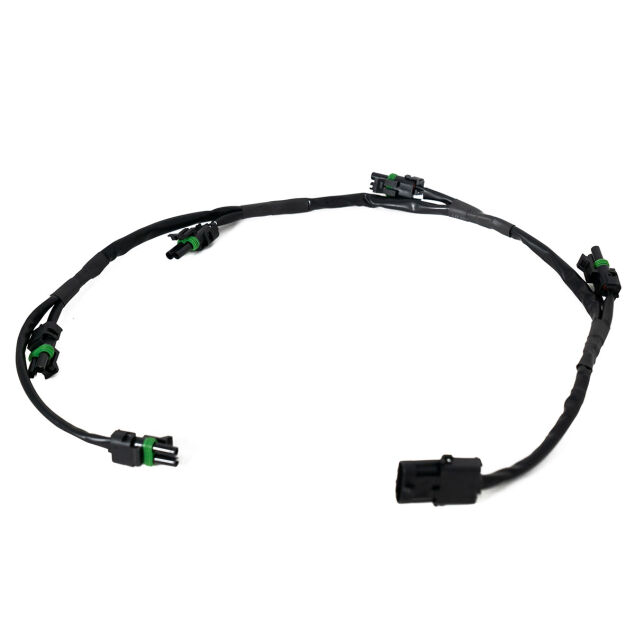

• 5-Light Harness - supports a five-light XL Linkable assembly for additional width and output

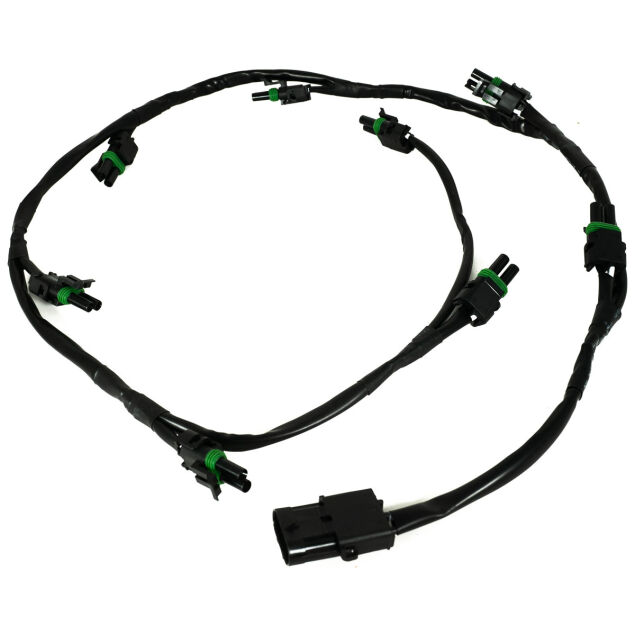

• 6-Light Harness - supports a six-light XL Linkable assembly for mid-width bar configurations

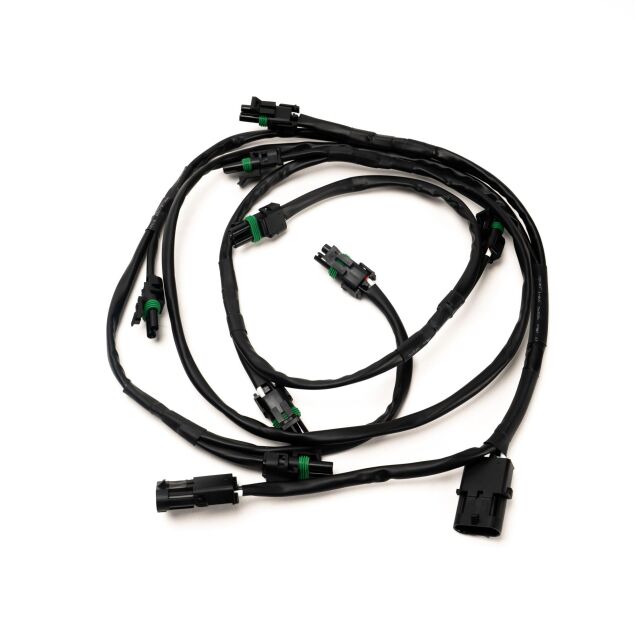

• 7-Light Harness - supports a seven-light XL Linkable assembly, including compatible Pro arrangements

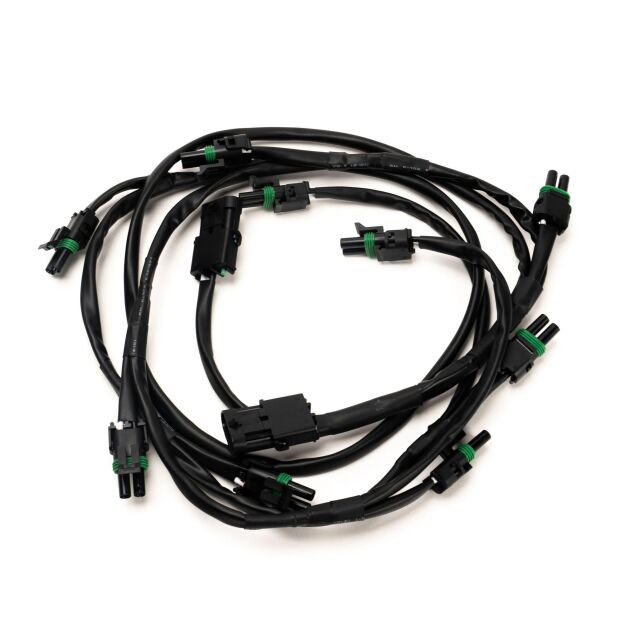

• 8-Light Harness - supports an eight-light XL Linkable assembly for wide mounting locations

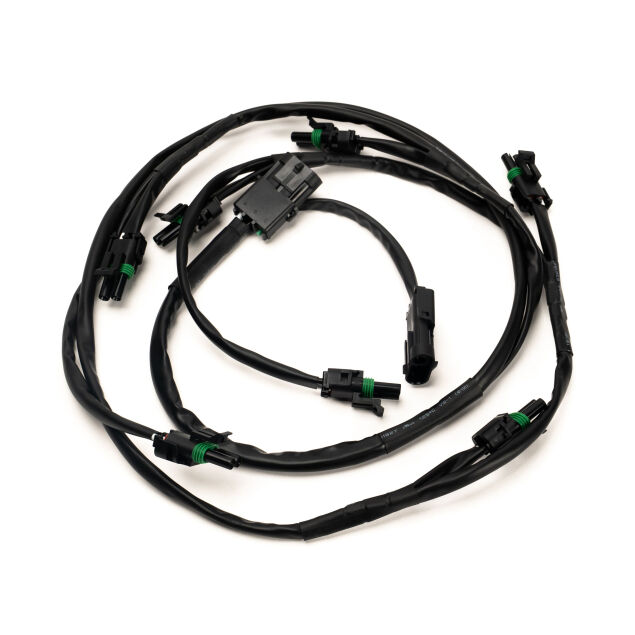

• 9-Light Harness - supports the largest identified XL Linkable assembly with nine light connections

Choose the harness with the same number of connections as the completed XL Linkable light assembly, from three lights through nine lights.



---



Why Choose

This product is ideal for customers who want a count-specific wiring solution that keeps a modular XL Linkable light bar organized and matched to its final number of lamps.

• Seven harness sizes cover a broad range of Linkable bar widths
• Count-specific leads avoid unnecessary unused connectors
• Compatibility with XL Sport and XL Pro supports several output strategies
• A modular electrical layout complements the adjustable Linkable mounting system
• Organized routing improves service access along a multi-light bar
• The selected harness can grow with a planned increase in lamp count when replaced accordingly
• Universal use supports custom off-road, overland, race, and work builds



---



What's Included

• One XL Linkable wiring harness in the selected light-count configuration

Note: Confirm included components before installation.



---



Installation Notes

• Count the installed XL lights and select a harness with the matching number of branches.
• Confirm the main power circuit, fuse, relay, switch, and control system are suitable for the combined electrical load.
• Secure each branch along the Linkable assembly without pinching the wire between light housings or brackets.
• Leave enough service slack for aiming and maintenance while keeping wiring clear of heat and moving components.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---
