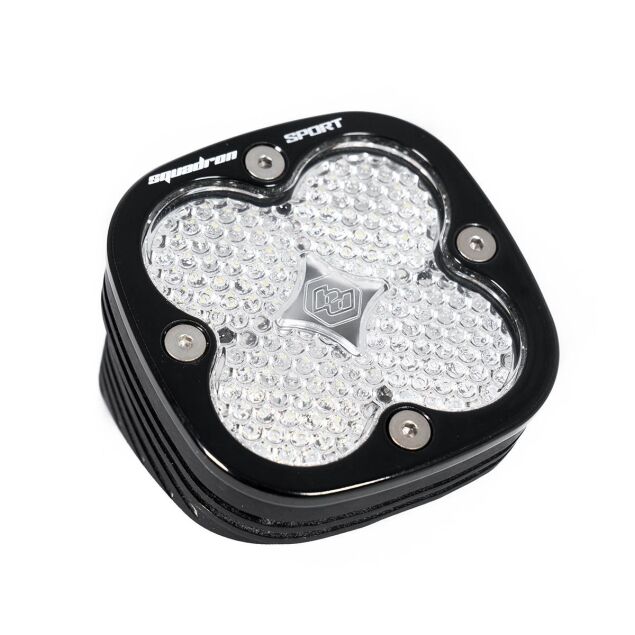

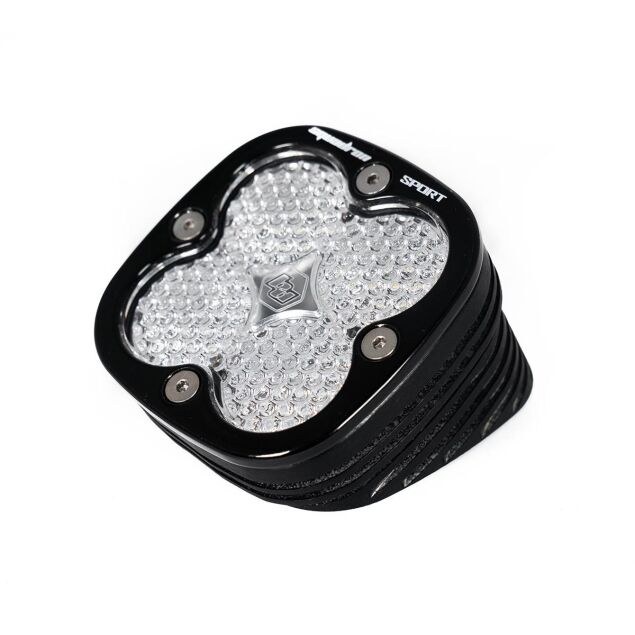

Baja Designs Squadron Sport Angle Mount LED Light Pod brings broad work and scene lighting to flat surfaces in a compact, purpose-built package. The integrated 25-degree angle is well suited to trailers, utility bodies, vehicle sides, camp systems, and work areas where a standard upright bracket could add unnecessary bulk. Its black housing and clear lens create a clean, technical appearance that fits naturally with off-road, powersports, and service equipment.

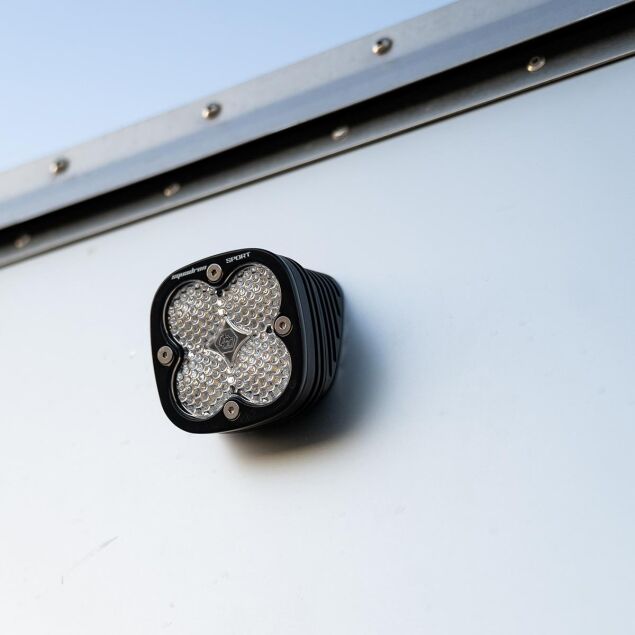

A Work/Scene beam pattern spreads illumination across the nearby area for tasks that benefit from width rather than maximum distance. Customers can use the pod to brighten loading zones, campsite surroundings, side areas, pit spaces, reverse work zones, and equipment compartments. By building the angle into the housing, the light can direct coverage outward from a flat panel while maintaining a streamlined mounting footprint.
The Squadron Sport model is rated at 3,162 lumens and 30.36 watts, balancing useful output with a compact electrical load. The housing measures about 3.07 inches square and 2.77 inches deep, making it easier to position where larger auxiliary lights would interfere with doors, racks, cargo, or body lines. Built-in overvoltage protection adds electrical protection for a properly designed installation.
Powder-coated cast aluminum construction, a hardcoated polycarbonate lens, and stainless steel mounting hardware support use in exposed environments. Durability references include IP69K water resistance, IK10 mechanical impact compliance, and durability testing that exceeds MIL-STD810G. These features make the light suitable for customers who regularly encounter dust, mud, rain, vibration, washdowns, and changing outdoor conditions.
The pod is sold individually and includes the mounting hardware needed for the angled installation, while the wiring harness is selected separately. This gives customers freedom to choose a single-light circuit, pair the pod with another light, integrate it with an existing accessory system, or select controls that suit the vehicle. Installation requires three small holes in a suitable flat surface, along with protected wiring and a correctly sized fused circuit.
The broad optic and compact angled form make this light especially useful when practical area coverage matters more than a long-range pencil beam. It can support daily work, weekend recreation, mobile service, trailer organization, and camp routines without overwhelming limited mounting space. Whether customers are upgrading for scene lighting, trailer utility, campsite visibility, or after-dark tasks, the Squadron Sport Angle Mount LED Light Pod delivers efficient broad coverage with clean angled placement. Now Available at LEER!
Features & Specifications
Product Type: Angle-mount LED auxiliary light pod
Brand: Baja Designs
Series: Squadron Sport
Beam Pattern: Work/Scene
Lens Color: Clear
Light Output: 3,162 lumens
Power Draw: 30.36 watts
Housing: Black powder-coated cast aluminum
Dimensions: 3.07 inches long x 3.07 inches high x 2.77 inches deep
Sold As: Single light pod
Wiring Harness: Not included
Functionality:
- Spreads light across nearby work and scene areas
- Directs illumination outward from a flat panel with an integrated angle
- Supports trailer, side, rear, camp, pit, and utility applications
- Fits compact locations where a large bracket would be intrusive
- Allows custom one-light or multi-light electrical layouts
- Works with a separately chosen harness and switching system
- Provides confirmed impact and water-resistance references for exposed use
Why Choose
This product is ideal for customers who want compact scene-light coverage with an integrated angled mount.
- Broad Work/Scene pattern supports practical close-range visibility
- 25-degree housing reduces the need for a separate angled bracket
- Compact footprint preserves space around racks, doors, and cargo
- Black finish complements common off-road and utility accessories
- Single-light packaging supports flexible build planning
- Moderate power draw fits many properly designed accessory circuits
- Durable construction suits regular outdoor and work use
What's Included
- One Baja Designs Squadron Sport Angle Mount LED Light Pod
- Clear Work/Scene lens and optic
- Angle-mount housing and mounting hardware
Note: Confirm included components before installation.
Installation Notes
- Mount only to a flat surface with enough structure to support the light through vibration
- Drill three small mounting holes and protect all exposed metal and wire pass-through points
- Select a compatible fused harness, relay, switch, and connectors for the electrical system
- Aim the light after installation to keep broad coverage useful and controlled
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Baja Designs backs this lighting product with a 30-day satisfaction guarantee and a limited lifetime warranty. Warranty service is subject to the brand terms in effect at the time of the claim, and proof of purchase may be required.
Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside applicable terms, and use that does not follow product or vehicle requirements. Inspect wiring, connectors, mounts, and fasteners regularly so installation-related issues can be addressed before they affect the light.
