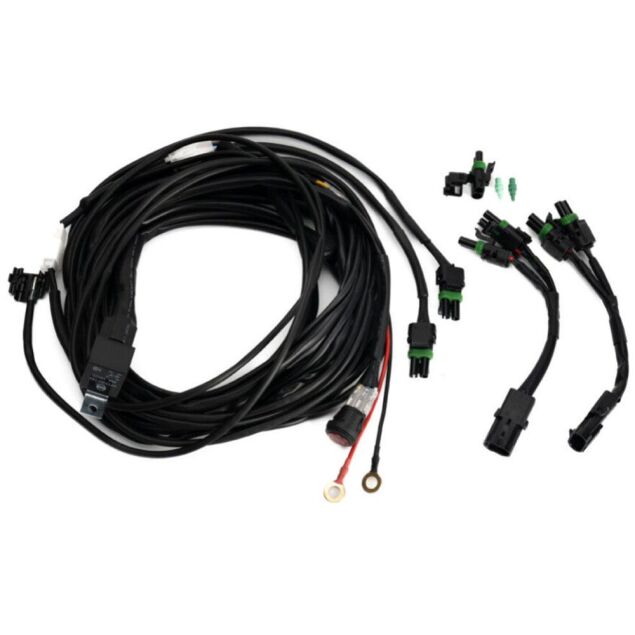

Baja Designs Squadron/S2/S1 3-Light Splitter Harness creates a coordinated electrical path for operating three compatible compact lights from one main harness. It is designed for Squadron, S2, and S1 lighting and includes the splitter arrangement needed to distribute power to three light connections. This layout is useful for centered three-pod systems, mixed front and side coverage, roof or rack arrays, and utility builds that benefit from an odd-numbered light arrangement.
The harness includes an ON/OFF/ON switch kit and splice connectors that can support a high-beam trigger when the vehicle and installation are compatible. This gives customers more control choices than a simple two-wire branch, but every function must be planned around the host vehicle electrical system. Trigger integration should be completed only after verifying signal type, voltage, grounding, and any vehicle electronics that could be affected.
A three-light system can place one pod at the center and two toward the edges, or distribute lights among forward, cornering, side, and task positions. Beam pattern, lens color, output, and mounting location should be chosen together so the three lights complement rather than compete with one another. The splitter manages connection layout; it does not increase the electrical capacity of the main harness, relay, fuse, switch, or power source.
Circuit planning is essential because three lights can create a meaningful combined load. Customers should total the amperage or wattage of all connected lights, confirm compatibility with the main harness, and use correct fuse and relay protection. Connectors should be fully seated and strain-relieved, and unused trigger features should be protected in line with the electrical design rather than left exposed.
The prefabricated format reduces the need to create an improvised three-way branch from loose wire and generic connectors. That can improve serviceability, consistency, and installation appearance when the lights use the intended Baja Designs connections. The harness should still be routed away from exhaust heat, engine movement, steering, suspension travel, sharp edges, and any location where water or debris can remain trapped around a connector.
This splitter supports custom truck, SUV, powersports, trailer, and work-equipment lighting systems where three compatible lights are the right layout. It gives customers a purpose-built way to coordinate the branch connections and switching components while retaining responsibility for the complete circuit design. Whether customers are upgrading for a three-pod forward array, cornering support, rack lighting, or utility illumination, the Squadron/S2/S1 3-Light Splitter Harness delivers organized multi-light control for compatible systems. Now Available at LEER!
Features & Specifications
Product Type: Three-light auxiliary lighting splitter harness
Brand: Baja Designs
Compatible Light Groups: Squadron, S2, and S1
Light Connections: Three compatible lights
Switching: ON/OFF/ON switch kit
Additional Connections: Splice connectors for a compatible trigger circuit
Functionality:
- Distributes one compatible main-harness connection to three lights
- Supports centered three-pod and mixed-position lighting layouts
- Includes switching components for controlled operation
- Can support a compatible high-beam trigger integration
- Reduces the need for improvised three-way wiring branches
- Keeps compatible light connections organized and serviceable
- Works with selected Baja Designs Squadron, S2, and S1 systems
Why Choose
This product is ideal for customers who want an organized way to operate three compatible compact lights from one main harness.
- Purpose-built three-light branching supports clean custom layouts
- Included ON/OFF/ON switching adds control flexibility
- Prefabricated connections improve serviceability compared with improvised splices
- Compatibility with three major compact-light groups supports varied builds
- Three-light arrangements can combine center, edge, cornering, or task positions
- Organized routing improves the finished appearance of the electrical system
- Trigger capability can integrate lighting behavior when the vehicle circuit is compatible
What's Included
- One Baja Designs Squadron/S2/S1 3-Light Splitter Harness
- ON/OFF/ON switch kit
- Splice connectors for compatible trigger integration
Note: Confirm included components before installation.
Installation Notes
- Confirm connector compatibility and calculate the combined electrical load of all three lights
- Verify that the main harness, fuse, relay, switch, wiring, and power source support the total load
- Complete any high-beam trigger connection only after confirming vehicle signal and grounding requirements
- Secure all branches away from heat, sharp edges, movement, and areas that collect water or debris
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Warranty coverage is subject to Baja Designs terms in effect at the time of purchase and may require proof of purchase. Coverage typically excludes improper installation, misuse, modification, electrical faults, overloading, tampering, impact damage, and use outside the intended application.
Customers should inspect the accessory and the surrounding installation periodically, especially after off-road travel, vibration, weather exposure, or changes to the lighting system. Correct routing, secure fasteners, compatible connectors, and proper electrical capacity help preserve reliable operation.
