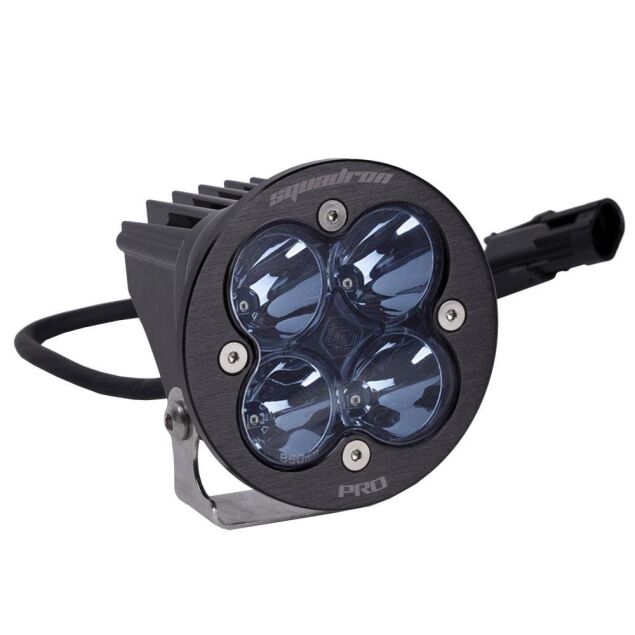

Baja Designs Squadron-R Pro Infrared LED Light Pod



Baja Designs Squadron-R Pro Infrared LED Light Pod is a compact 850nm infrared auxiliary light developed for specialized nighttime applications that use compatible infrared viewing equipment. The round Squadron-R bezel gives the familiar compact pod a distinct profile, while the black aluminum housing maintains a discreet, professional appearance on powersports, utility, hunting, security, and other purpose-built platforms. This is not a conventional visible-light pod and should be selected only when the intended equipment and operating environment call for infrared illumination.

An infrared Driving/Combo optic distributes energy for a blend of forward reach and peripheral coverage when viewed through compatible systems. The pattern supports movement through varied terrain by avoiding the extremely narrow field associated with a dedicated spot optic. Proper aiming remains essential because infrared illumination can still reflect from dust, vegetation, glass, body panels, and nearby surfaces in ways that affect the viewing system.

The pod uses Osram 850nm LED technology and is rated at 24 watts with a 1.73-amp draw. Its housing measures about 3.07 inches long, 3.07 inches high, and 2.76 inches deep, keeping the installation compact enough for many cage, bumper, rack, and equipment locations. Built-in overvoltage protection supports the light when it is connected to a properly fused and controlled electrical circuit.

Aircraft-grade aluminum with a hard-anodized finish, a billet-machined aluminum bezel, a hardcoated polycarbonate lens, and stainless steel mounting hardware support demanding outdoor use. Durability references include IP69K water resistance, IK10 mechanical impact compliance, and durability testing that exceeds MIL-STD810G. These construction details matter on equipment exposed to vibration, dust, moisture, branches, washdowns, and repeated transport.

The Squadron-R Pro Infrared pod is sold individually and does not include a wiring harness, allowing customers to integrate it into a purpose-built electrical and control system. Wiring, switching, connector selection, and power management should match the host vehicle and any compatible viewing equipment. Installation planning should also consider concealment, reflected energy, operator sight lines, heat sources, moving parts, and the need to prevent accidental activation.

This specialized light is best suited to experienced users who understand infrared equipment, aiming, and legal or land-use requirements. The compact housing can support discreet placement while the Driving/Combo optic provides a useful balance of coverage for controlled nighttime operation. Whether customers are upgrading for specialized night observation, property work, hunting support, or controlled off-road use, the Squadron-R Pro Infrared LED Light Pod delivers compact 850nm illumination in a durable housing. Now Available at LEER!



---



Features & Specifications

Product Type: Infrared LED auxiliary light pod

Brand: Baja Designs

Series: Squadron-R Pro

Infrared Wavelength: 850nm

Beam Pattern: Driving/Combo

Power Draw: 24 watts

Amperage: 1.73 amps

Housing: Black hard-anodized aircraft-grade aluminum

Dimensions: 3.07 inches long x 3.07 inches high x 2.76 inches deep

Sold As: Single light pod

Wiring Harness: Not included

Functionality:

• Provides 850nm infrared illumination for compatible viewing systems
• Blends forward reach and peripheral coverage through a Driving/Combo optic
• Supports specialized nighttime observation and controlled off-road operation
• Fits compact mounting locations on powersports and utility equipment
• Allows custom wiring and switching integration
• Uses durable housing, lens, bezel, and mounting materials
• Includes built-in overvoltage protection for a properly designed circuit



---



Why Choose

This product is ideal for customers who want compact 850nm infrared lighting for compatible nighttime systems.

• Specialized infrared output supports applications where visible auxiliary light is not desired
• Compact Squadron-R shape preserves mounting flexibility
• Driving/Combo optic provides a practical blend of reach and width
• Black housing supports discreet integration with equipment and accessories
• Durability references suit exposed off-road and utility environments
• Single-pod format allows focused placement or planned multi-light systems
• Separate-harness design supports purpose-built electrical controls



---



What's Included

• One Baja Designs Squadron-R Pro Infrared LED Light Pod
• 850nm infrared Driving/Combo optic and lens assembly
• Stainless steel mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Use only with compatible infrared viewing equipment and a properly designed fused circuit
• Select a location that limits unwanted reflection from body panels, glass, dust, vegetation, and nearby structures
• Install a compatible harness and control method that prevents accidental activation
• Aim and test the light in a controlled environment before operational use

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs backs this lighting product with a 30-day satisfaction guarantee and a limited lifetime warranty. Warranty service is subject to the brand terms in effect at the time of the claim, and proof of purchase may be required.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside applicable terms, and use that does not follow product or vehicle requirements. Inspect wiring, connectors, mounts, and fasteners regularly so installation-related issues can be addressed before they affect the light.
