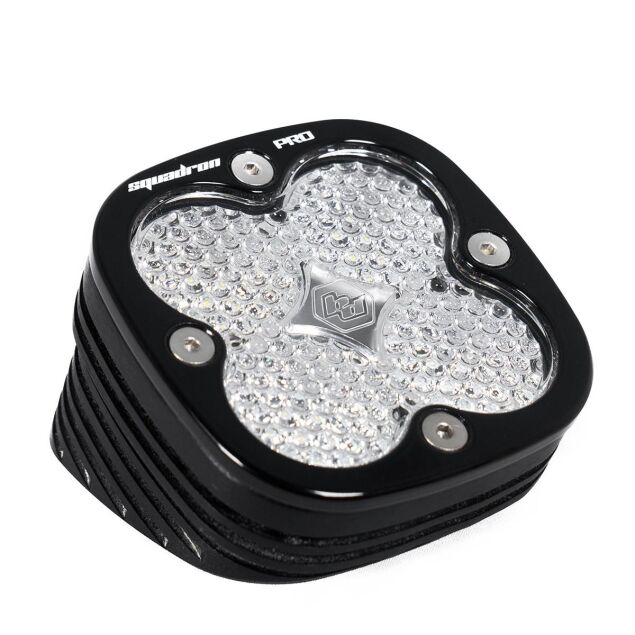

Baja Designs Squadron Pro Angle Mount LED Light Pod - Black



Baja Designs Squadron Pro Angle Mount LED Light Pod adds concentrated work and scene lighting to flat exterior surfaces where a conventional upright bracket is not the cleanest solution. Its compact square housing and integrated 25-degree angle create a purposeful, low-profile installation for trailers, service bodies, camp setups, pits, and vehicle-side illumination. The black housing keeps the appearance coordinated with common off-road and utility accessories while the clear lens maintains a crisp, functional look.

The Work/Scene optic spreads useful light across a broad nearby area instead of concentrating the output into a narrow long-distance beam. That pattern supports tasks such as loading equipment, organizing camp, checking a work area, illuminating the side of a trailer, or adding controlled side coverage around a vehicle. The angled design directs the light away from the mounting surface, helping customers place illumination where it is needed without building a separate stand-off bracket.

Squadron Pro performance is packaged in a housing measuring about 3.07 inches square and 2.77 inches deep. Output is rated at 4,095 lumens with 41.4 watts of power draw, giving the compact pod substantial near-field capability for demanding utility and recreational use. Built-in overvoltage protection supports the electrical system, while the hardcoated polycarbonate lens and aluminum housing are designed for exposed installations.

The black hard-anodized and powder-coated cast aluminum housing, powder-coated cast aluminum bezel, and stainless steel mounting hardware are suited to equipment that sees vibration, dust, rain, cleaning, and repeated outdoor use. Durability references include IP69K water resistance, IK10 mechanical impact compliance, and testing that exceeds MIL-STD810G. These features make the pod a practical choice for customers who expect their lighting to remain mounted through changing terrain and weather.

Installation uses the angled flush-mount format and requires three small mounting holes in a suitable flat surface. The light is sold individually and does not include a wiring harness, allowing customers to match the electrical controls, lead length, and number of lights to the intended build. Careful placement is important so the Work/Scene pattern illuminates the target area without creating unwanted glare for the driver or nearby traffic.

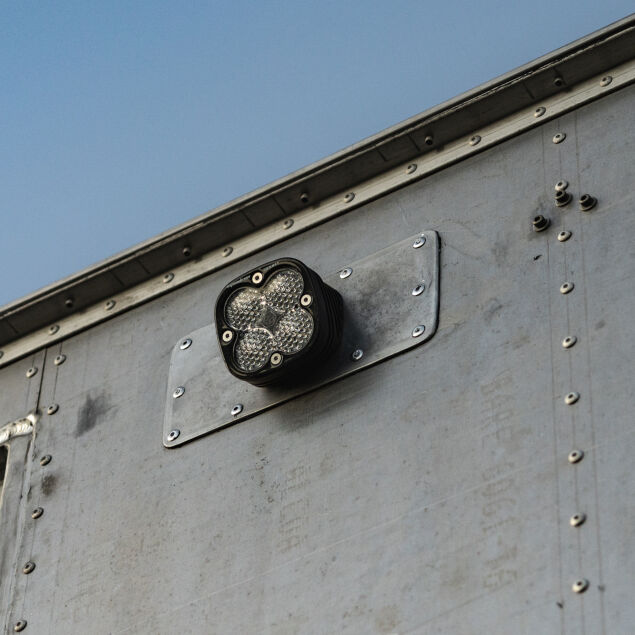

The single-pod format works well as a dedicated side light, rear work light, trailer utility light, or scene light, and matched pods can be used when balanced coverage is preferred. Its compact dimensions preserve mounting flexibility while the broad optic supports practical visibility around work and recreation areas. Whether customers are upgrading for campsite setup, equipment loading, trailer lighting, or after-dark work, the Squadron Pro Angle Mount LED Light Pod delivers powerful nearby illumination in a compact angled housing. Now Available at LEER!



---



Features & Specifications

Product Type: Angle-mount LED auxiliary light pod

Brand: Baja Designs

Series: Squadron Pro

Beam Pattern: Work/Scene

Lens Color: Clear

Light Output: 4,095 lumens

Power Draw: 41.4 watts

Housing: Black hard-anodized and powder-coated cast aluminum

Dimensions: 3.07 inches long x 3.07 inches high x 2.77 inches deep

Sold As: Single light pod

Wiring Harness: Not included

Functionality:

• Provides broad near-field illumination for work and scene use
• Angles light away from a flat mounting surface without a separate stand-off bracket
• Supports side, rear, trailer, camp, pit, and utility lighting layouts
• Uses a compact housing where installation space is limited
• Allows one-pod or matched multi-pod lighting arrangements
• Pairs with a separately selected harness and switch strategy
• Handles exposed outdoor use with impact and water-resistance ratings



---



Why Choose

This product is ideal for customers who want high-output scene lighting from a compact angled pod.

• Integrated 25-degree housing creates a clean solution for flat surfaces
• Work/Scene optic fills nearby areas with useful coverage
• Compact size supports flexible placement on vehicles and trailers
• Black housing blends with common racks, bumpers, body panels, and utility equipment
• Single-pod packaging lets customers build only the coverage they need
• Durable housing, lens, and hardware suit demanding outdoor environments
• Separate-harness design supports custom control and routing choices



---



What's Included

• One Baja Designs Squadron Pro Angle Mount LED Light Pod
• Clear Work/Scene lens and optic
• Angle-mount housing and mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Select a flat surface with adequate strength and clearance behind the mounting area
• Installation requires three small mounting holes and secure weather-conscious wire routing
• Use a compatible harness, fuse, relay, switch, and connector arrangement sized for the electrical load
• Aim the pod after installation and verify that the beam does not create unsafe glare

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs backs this lighting product with a 30-day satisfaction guarantee and a limited lifetime warranty. Warranty service is subject to the brand terms in effect at the time of the claim, and proof of purchase may be required.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside applicable terms, and use that does not follow product or vehicle requirements. Inspect wiring, connectors, mounts, and fasteners regularly so installation-related issues can be addressed before they affect the light.
