Baja Designs Squadron 2.0 Dual Fog Pocket Light Kit



The Baja Designs Squadron 2.0 Dual Fog Pocket Light Kit transforms a compatible factory fog area into a coordinated four-light system. It is built for customers who want more coverage than a basic two-lamp replacement and who need clear choices between balanced Sport output, higher-output Pro performance, and combinations that include a controlled SAE fog beam. The low bumper location keeps the lighting integrated while giving the front end a purposeful four-pod appearance.

Sport and Pro versions use the redesigned Squadron 2.0 platform. Squadron 2.0 Sport produces 3,200 lumens at 30 watts and 2.2 amps per light, making it a strong choice for customers who value useful trail coverage with moderate power demand. Squadron 2.0 Pro increases output to 5,921 lumens at 65 watts and 4.7 amps per light for builds that spend more time in open terrain, faster trail conditions, or dark work environments.

The dual fog-pocket layouts can combine Spot and Driving Combo optics to cover different zones ahead of the vehicle. Spot beams reach farther down the trail, while Driving Combo patterns add width and mid-range illumination. By placing both patterns across the four-light system, customers gain more useful coverage than four identical beams aimed at the same area.

SAE-equipped configurations add two Squadron SAE lights to the Sport or Pro auxiliary pair. Each Squadron SAE produces 2,420 lumens at 29 watts and uses aspheric projector optics to create a controlled fog pattern with a sharp cutoff. Clear and Baja Amber SAE lens choices allow customers to balance crisp white appearance against increased contrast in dust, fog, rain, snow, and road spray.

Vehicle-specific fascia pieces, brackets, adapters, splitters, and harness components position and connect the lights within the factory bumper area. Selected applications offer toggle-switch or upfitter wiring so customers can match the electrical control to the vehicle's equipment. Updated Squadron 2.0 connections, selectable backlighting, and serviceable non-SAE optics support a clean installation and long-term use.

The four-light package is well suited to overland trucks, work vehicles, and off-road builds that need both visual integration and meaningful output. Whether customers are upgrading for trail travel, poor-weather visibility, rural roads, worksite access, or a more complete lower-bumper lighting system, the Baja Designs Squadron 2.0 Dual Fog Pocket Light Kit delivers configurable Sport, Pro, and SAE performance. Now Available at LEER!



---



Features & Specifications

Product Type: Four-light dual fog-pocket kit

Brand: Baja Designs

Series: Squadron 2.0 Sport, Squadron 2.0 Pro, and Squadron SAE

Light Quantity: Four lights

Mounting Location: Vehicle-specific factory fog-pocket area

Squadron 2.0 Sport Output: 3,200 lumens at 30 watts and 2.2 amps per light

Squadron 2.0 Pro Output: 5,921 lumens at 65 watts and 4.7 amps per light

Squadron SAE Output: 2,420 lumens at 29 watts and 2.1 amps per light

Beam Choices: Spot, Driving Combo, and SAE fog depending on kit

Lens Choices: Clear and Baja Amber on selected SAE configurations

Wiring Choices: Toggle-switch or vehicle upfitter harness on selected applications

Backlighting: Selectable backlighting on Squadron 2.0 lights

Mounting Hardware: Application-specific brackets, fascia pieces, and hardware

Vehicle Fitment: Selected trucks with compatible fog-pocket layouts

Functionality:

• Converts compatible fog pockets into a balanced four-light auxiliary system.
• Combines Spot and Driving Combo patterns for distance, width, and mid-range coverage.
• Offers Sport output for capable lighting with lower power demand than Pro.
• Offers Pro output for stronger trail, open-terrain, and worksite illumination.
• Adds a controlled SAE fog pattern on Sport and Pro combination kits.
• Provides Clear and Baja Amber SAE choices for different weather preferences.
• Supports toggle-switch or factory upfitter control on selected applications.
• Uses vehicle-specific brackets and fascia pieces for an integrated bumper appearance.



---



Available Options

The Baja Designs Squadron 2.0 Dual Fog Pocket Light Kit is offered in four performance configurations:

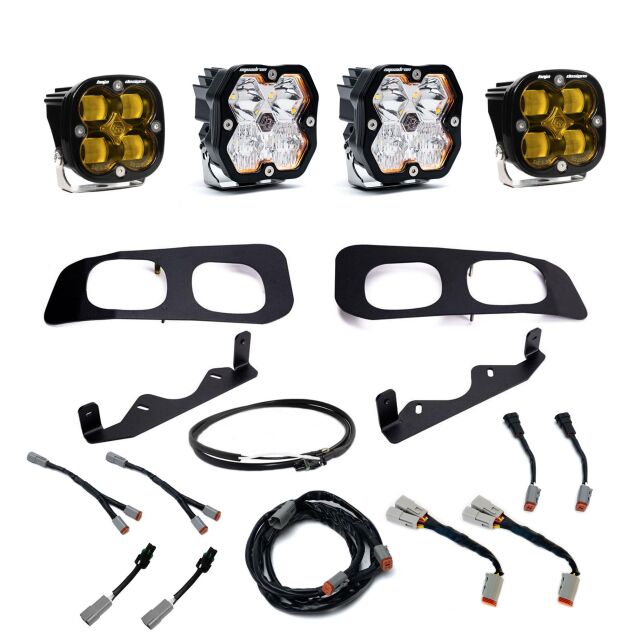

• Squadron 2.0 Sport with Squadron SAE - Pairs two 3,200-lumen Sport lights with two controlled SAE fog lights for customers who want balanced trail coverage and a dedicated fog pattern.

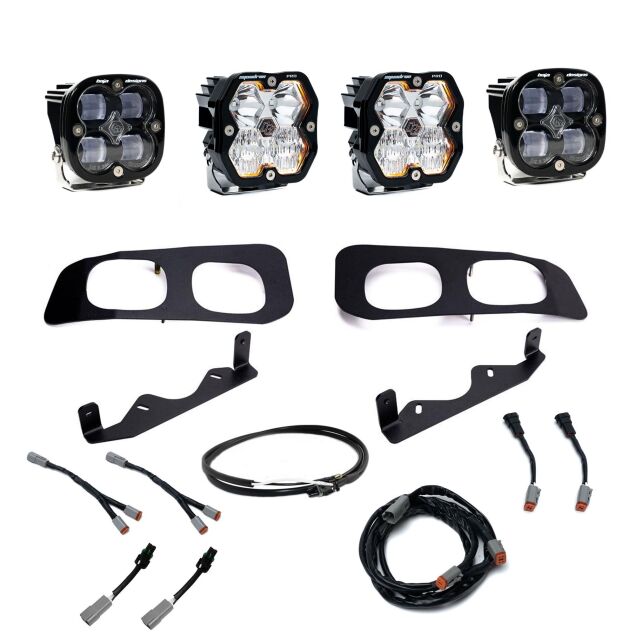

• Squadron 2.0 Pro with Squadron SAE - Pairs two 5,921-lumen Pro lights with two controlled SAE fog lights for customers who want stronger auxiliary output without giving up a purpose-built fog beam.

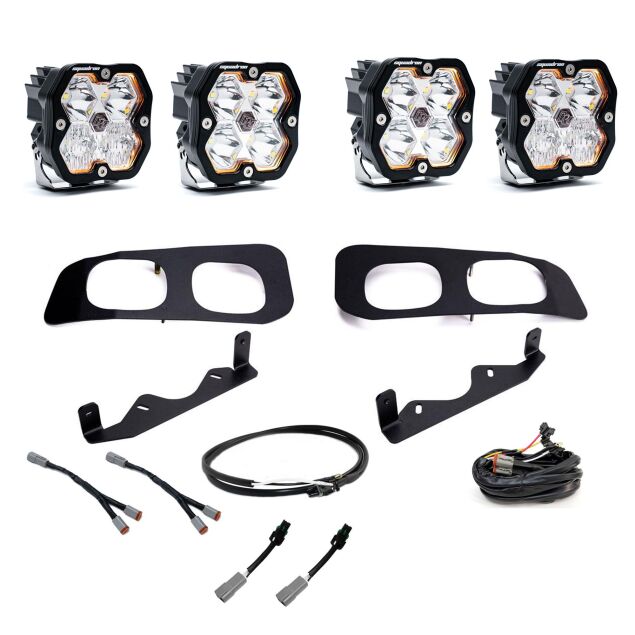

• Squadron 2.0 Sport Dual Fog Pocket - Uses four Sport lights in Spot and Driving Combo patterns for broad off-road coverage with moderate electrical demand.

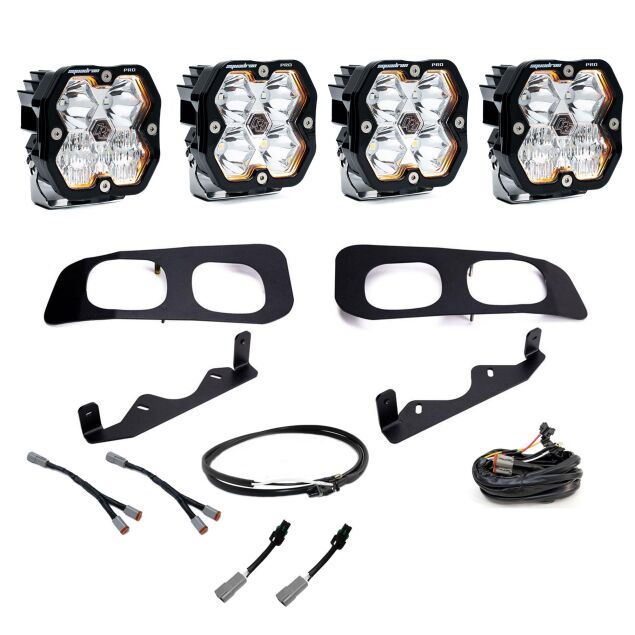

• Squadron 2.0 Pro Dual Fog Pocket - Uses four Pro lights in Spot and Driving Combo patterns for the highest-output four-light setup.

Choose a Sport and SAE combination for balanced output and fog control, choose a Pro and SAE combination for stronger trail lighting with fog control, or choose the four-light Sport or Pro layout for an off-road-focused beam package.



---



Why Choose

This product is ideal for customers who want a vehicle-integrated four-light system with clear Sport, Pro, and SAE choices.

• Four lights provide more beam-shaping flexibility than a basic two-light replacement.
• Sport and Pro output levels let customers match performance to electrical demand and driving speed.
• Spot and Driving Combo optics create useful distance and width across the trail.
• SAE-equipped versions add controlled low-mounted fog illumination.
• Clear and Baja Amber SAE choices support different weather and appearance priorities.
• Vehicle-specific fascia and brackets produce a cleaner bumper integration than universal mounts.
• Toggle and upfitter wiring choices support different vehicle electrical systems.
• Selectable backlighting gives the Squadron 2.0 lights a distinctive low-intensity accent.



---



What's Included

• Four Baja Designs lights in the selected Sport, Pro, or Sport/Pro with SAE combination
• Vehicle-specific fog-pocket fascia pieces
• Vehicle-specific mounting brackets
• Application-specific adapters, splitters, extensions, and wiring harness components
• Necessary mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the chosen kit matches the vehicle year, trim, bumper style, fog-pocket design, and preferred toggle or upfitter control.
• Install the supplied fascia and brackets, then verify each light has clearance for aiming and cooling.
• Route the application-specific harness away from sharp edges, heat, moving parts, and pinch points before connecting the switch or upfitter circuit.
• Aim Spot, Driving Combo, and SAE fog lights for their intended zones; do not open or alter sealed SAE lights.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lists Squadron lighting kits with a 30-Day Satisfaction Guarantee and a limited lifetime warranty against qualifying manufacturing defects.

Warranty coverage generally excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, overloading, and impact damage outside warranty terms. uService applies to compatible non-SAE lights, while sealed SAE products must remain intact for warranty evaluation.
