Baja Designs Squadron 2.0 A-Pillar Light Kit



The Baja Designs Squadron 2.0 A-Pillar Light Kit is a vehicle-specific two-light A-pillar auxiliary lighting system built for customers who need broader forward and side visibility without adding a large roof bar or exposed front-bumper lighting package. Its paired cowl-area bracket layout keeps the upgrade compact and aligned with the vehicle body while supporting ditch lighting, trail navigation, backroad travel, campsite access, worksite visibility, and obstacle awareness near the front corners. That combination makes it a practical choice for truck and SUV owners who want application-specific brackets and modern Squadron 2.0 performance where useful illumination, thoughtful placement, and dependable operation matter after dark.

The lighting system is organized around a choice of Squadron 2.0 Sport lights at 3,200 lumens and 30 watts each or Squadron 2.0 Pro lights at 5,921 lumens and 65 watts each. Driving/Combo, Spot, and Wide Cornering lens configurations let customers tune the pair for blended forward coverage, longer reach, or wider near-field visibility. Instead of relying only on raw brightness, the design helps customers place controlled light in the driving, cornering, reverse, fog, work, or scene zone that matches the installation. This makes the output easier to use in real conditions, especially when space, sight lines, and beam direction are important.

Construction centers on vehicle-specific steel brackets, two Squadron 2.0 light pods, 4-pin Deutsch connectivity, updated sealing, and kit-matched wiring components. IP69K-rated lights, redesigned gaskets, clip-in reflectors, and adjustable brackets support weather exposure, vibration, lens service, and precise aiming. These details support repeated exposure to vibration, dust, moisture, temperature changes, and the impacts that can come with trail travel, utility work, towing support, and outdoor equipment use. The result is a lighting package prepared for regular use where dependable materials and secure mounting matter as much as the light output itself.

Customers can tailor the lighting package through Sport and Pro output levels, multiple clear lens patterns, toggle or upfitter wiring on applicable kits, and nine selectable backlight colors. Sport balances strong output with lower power demand, while Pro adds significantly more light from the same compact A-pillar position. The available choices let customers balance distance, width, contrast, electrical demand, mounting style, and overall system output without changing the core purpose of the product. Each selection should be matched to the intended mounting position and the visibility task it needs to support.

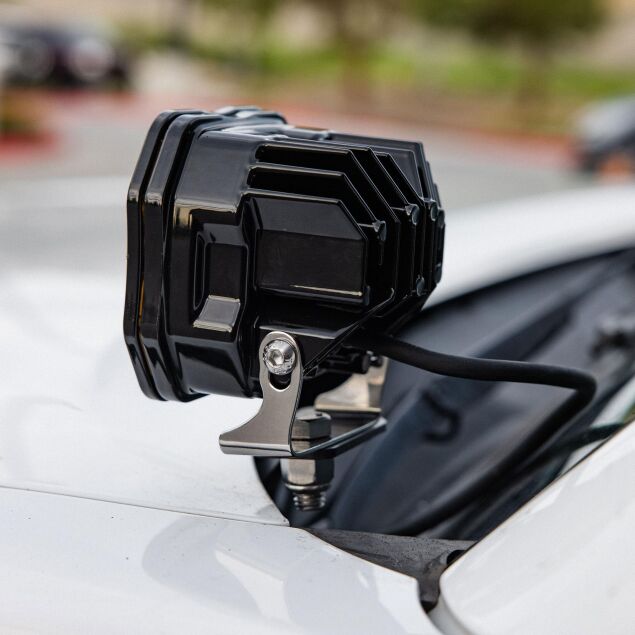

Installation is designed around application-specific brackets that use the intended cowl or A-pillar mounting points. Kit-matched 4-pin harness components support the main beam and selectable backlight functions; wiring type varies by the selected vehicle application. A strong mounting surface, protected wiring route, correct circuit capacity, and final beam aiming are important for reliable performance. Vehicle fitment, trim details, available space, switching method, and local lighting requirements should be confirmed before installation begins.

In regular use, the Squadron 2.0 A-Pillar Light Kit supports ditch lighting, tight-trail visibility, turn-in illumination, long backroad travel, camp setup, jobsite tasks, and supplemental forward lighting. The elevated position can fill dark areas outside the headlamp pattern and gives customers adjustability for directing light toward turns, obstacles, or a work zone. Its combination of purpose-shaped light, durable construction, and application-focused mounting helps customers build a lighting system that feels intentional rather than added as an afterthought. Whether customers are upgrading for trail driving, overlanding, nighttime backroads, worksite access, or compact ditch lighting, Squadron 2.0 A-Pillar Light Kit delivers application-focused visibility with selectable Sport or Pro performance. Now Available at LEER!



---



Features & Specifications

Product Type: vehicle-specific A-pillar LED light kit

Brand: Baja Designs

Series: Squadron 2.0

Light Quantity: two light pods

Mounting Location: A-pillar or cowl area

Sport Output: 3,200 lumens at 30 watts and 2.2 amps per light

Pro Output: 5,921 lumens at 65 watts and 4.7 amps per light

Operating Voltage: 12-32 volts

Backlight: nine selectable colors

Connector: 4-pin Deutsch

Durability: IP69K rated

Fitment: vehicle-specific truck and SUV applications

Functionality:

• Adds elevated A-pillar and ditch lighting.
• Fills dark areas outside the factory headlamp pattern.
• Supports Spot, Driving/Combo, and Wide Cornering coverage.
• Supports trail, overland, backroad, and campsite use.
• Supports selectable accent backlighting.
• Provides adjustable aiming for obstacles, turns, and work zones.
• Uses application-specific brackets for a clean installation.
• Offers Sport and Pro performance levels.



---



Available Options

The Squadron 2.0 A-Pillar Light Kit is available in multiple configurations:

• Squadron 2.0 Sport kit: two 3,200-lumen lights with 30-watt power draw per light for strong all-around use and lower electrical demand.
• Squadron 2.0 Pro kit: two 5,921-lumen lights with 65-watt power draw per light for higher-output trail and forward visibility.
• Toggle wiring: a dedicated switch arrangement for applications that do not use factory auxiliary circuits.
• Upfitter wiring: connection components for compatible factory auxiliary-switch systems on applicable vehicles.
• Spot, Driving/Combo, and Wide Cornering lenses: beam choices for distance, blended forward coverage, and broad near-field visibility.

Choose Sport for strong all-around lighting with lower power demand, or choose Pro for higher output from the same compact mounting position. Match the harness style to the vehicle and select the lens pattern that best supports distance, blended forward, or wide ditch coverage.



---



Why Choose

This product is ideal for customers who want compact vehicle-specific ditch lighting with modern optics, adjustable aiming, and selectable output levels.

• Adds useful forward and side illumination without requiring a large light bar.
• Uses application-specific brackets for a cleaner and more secure installation.
• Offers Sport and Pro models for different output and electrical priorities.
• Supports multiple beam patterns through included or available lens configurations.
• Adds nine selectable backlight colors for coordinated accent lighting.
• Uses durable 4-pin Deutsch connectivity and improved sealing.
• Provides adjustable positioning for turns, obstacles, campsites, and work areas.
• Includes Baja Designs satisfaction and limited lifetime warranty support.



---

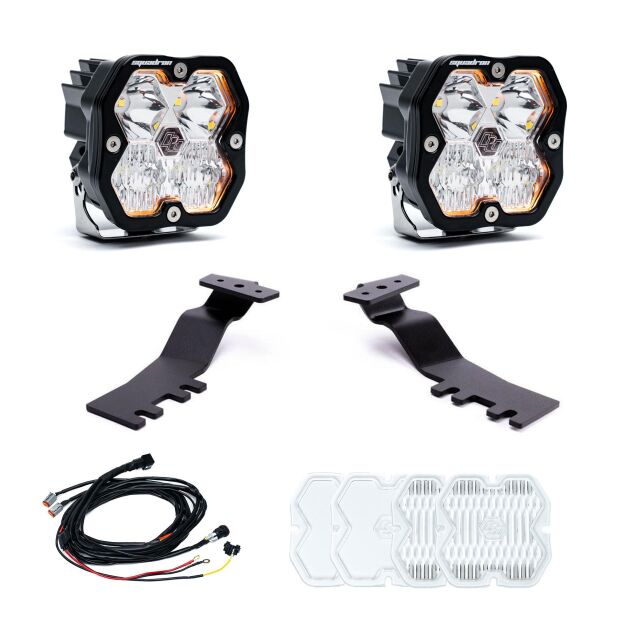

What's Included

• Two Squadron 2.0 Sport or Squadron 2.0 Pro light pods
• A pair of vehicle-specific A-pillar or cowl brackets
• Kit-matched toggle or upfitter wiring components
• Selected and supplemental clear lens configurations where specified by the kit
• All necessary mounting hardware
• Product documentation

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, model, trim, cowl design, and selected harness style before ordering.
• Install the brackets at the intended vehicle mounting points and verify hood, windshield, wiper, and door clearance.
• Route the 4-pin wiring away from hinges, hot components, sharp edges, and water-trap locations.
• Aim both lights after installation so the selected patterns improve visibility without reflecting excessively from the hood or mirrors.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs supports this product with a 30-day satisfaction guarantee and a limited lifetime warranty covering qualifying defects in materials and workmanship under the applicable warranty terms.

Warranty coverage typically excludes improper installation, misuse, unauthorized modifications, unsuitable wiring, tampering, overloading, and impact damage outside the warranty terms. Proof of purchase may be required for a warranty claim.
