Baja Designs PowerSports Squadron Horizontal Mount Light Kit



Baja Designs PowerSports Squadron Horizontal Mount Light Kit packages compact LED lighting, cage-specific mounts, hardware, and wiring into a coordinated powersports upgrade. It is designed for customers who want a clean way to place auxiliary lights on a horizontal roll-cage tube without assembling unrelated brackets and electrical pieces. The black housings and compact square pods add purposeful off-road styling while keeping the installation visually balanced around the cage.

The clear Driving/Combo optics blend distance and width so the pair can support forward trail awareness as well as useful coverage toward road edges, turns, and nearby obstacles. Horizontal placement supports a clean cross-tube installation and can position the lights for forward, cornering, side, or task-oriented use depending on the chosen location and final aim. Final performance depends on mounting position and aiming, allowing customers to tune the pair for the terrain, vehicle use, and sight lines that matter most.

The available Squadron Pro and Squadron Sport choices let customers balance output, power draw, and budget while retaining the same compact Squadron format. Squadron Pro pods are rated at 4,095 lumens and 41.4 watts per light, while Squadron Sport pods are rated at 3,162 lumens and 30.36 watts per light when that model is offered. Both use a compact housing measuring about 3.07 inches square and 2.77 inches deep.

Black aluminum housings, hardcoated polycarbonate lenses, billet-machined aluminum bezels, and stainless steel mounting hardware support frequent use in exposed powersports environments. Durability references include IP69K water resistance, IK10 mechanical impact compliance, and durability testing that exceeds MIL-STD810G. Built-in overvoltage protection adds another layer of protection when the kit is connected through the supplied electrical components and installed correctly.

Mount-diameter choices match common roll-cage tube sizes, so customers should measure the intended tube rather than relying on a visual estimate. The kit format includes a pair of lights, the matched mounts, mounting hardware, and a wiring harness with switching components. Correct routing should keep the harness away from steering movement, suspension travel, sharp edges, hot surfaces, and areas where occupants or cargo could pull on the wiring.

This lighting kit supports recreational riding, ranch work, property maintenance, campsite setup, and other after-dark activities where compact elevated lighting improves confidence. The paired layout creates balanced coverage and a finished appearance without requiring a large roof bar. Whether customers are upgrading for trail coverage, side visibility, reverse support, and outdoor work, the PowerSports Squadron Horizontal Mount Light Kit delivers coordinated mounting, durable construction, and versatile auxiliary illumination. Now Available at LEER!



---



Features & Specifications

Product Type: Horizontal roll-cage LED light kit

Brand: Baja Designs

Light Series: Squadron Pro and Squadron Sport

Beam Pattern: Driving/Combo

Lens Color: Clear

Mounting Location: horizontal roll-cage tube

Housing Color: Black

Lens Material: Hardcoated polycarbonate

Mounting Hardware Material: Stainless steel

Sold As: Pair of lights with mounts and wiring

Functionality:

• Mounts a pair of compact Squadron lights to a horizontal roll-cage tube
• Combines distance and width through Driving/Combo optics
• Adds balanced auxiliary coverage for powersports travel and work
• Keeps bumper and roof mounting space available for other equipment
• Includes coordinated mounts, hardware, and electrical components
• Supports tube-size matching for a secure roll-cage installation
• Allows final aiming to suit forward, cornering, side, or task coverage



---



Available Options

The PowerSports Squadron Horizontal Mount Light Kit is available in multiple configurations:

• Squadron Pro with 1.75 Inch Mount - Combines higher-output Squadron Pro pods with horizontal mounts for a 1.75 inch cage tube.
• Squadron Pro with 2 Inch Mount - Combines higher-output Squadron Pro pods with horizontal mounts for a 2 inch cage tube.
• Squadron Sport with 1.75 Inch Mount - Uses lower-draw Squadron Sport pods with horizontal mounts for a 1.75 inch cage tube.
• Squadron Sport with 2 Inch Mount - Uses lower-draw Squadron Sport pods with horizontal mounts for a 2 inch cage tube.

Choose the mount diameter that matches the measured roll-cage tube, then choose Squadron Pro for higher output or Squadron Sport for a lower-draw option when both light series are offered.



---



Why Choose

This product is ideal for customers who want a coordinated pair of cage-mounted lights with matched hardware and wiring.

• Complete kit format reduces the need to source separate major components
• Horizontal mounting makes productive use of existing cage structure
• Paired lights create symmetrical coverage and a finished appearance
• Driving/Combo optics support varied terrain rather than a single narrow use
• Compact Squadron housings preserve space around the cage and bodywork
• Durability references support use in wet, dusty, and vibration-prone environments
• Multiple tube sizes help customers match common powersports cage dimensions



---

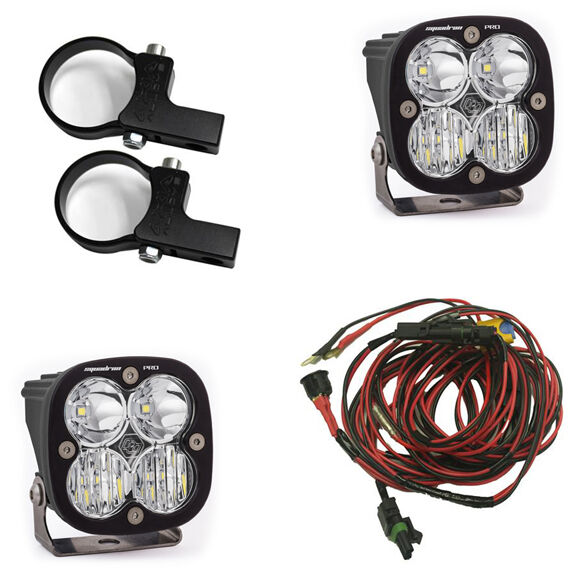

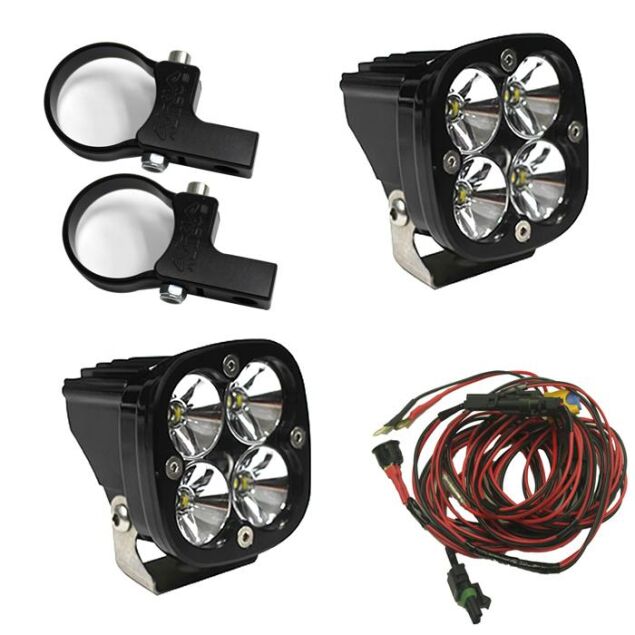

What's Included

• Two Baja Designs Squadron LED light pods
• Two matched roll-cage light mounts
• Mounting hardware
• Wiring harness and switching components

Note: Confirm included components before installation.



---



Installation Notes

• Measure the outside diameter of the intended cage tube before selecting the mount size
• Verify clearance for doors, nets, windshields, roofs, steering movement, suspension travel, and occupant space
• Route and secure wiring away from heat, sharp edges, moving parts, and pinch points
• Aim both lights after installation and confirm fastener torque after the first ride

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs backs this lighting product with a 30-day satisfaction guarantee and a limited lifetime warranty. Warranty service is subject to the brand terms in effect at the time of the claim, and proof of purchase may be required.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside applicable terms, and use that does not follow product or vehicle requirements. Inspect wiring, connectors, mounts, and fasteners regularly so installation-related issues can be addressed before they affect the light.
