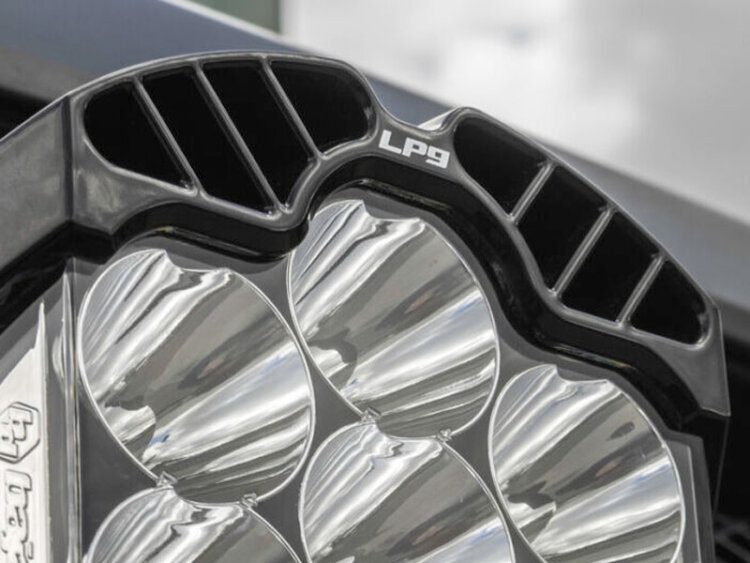

Direct Ducted Cooling

Front-facing air channels direct airflow across the heat sinks to help control operating temperatures during demanding off-road use.

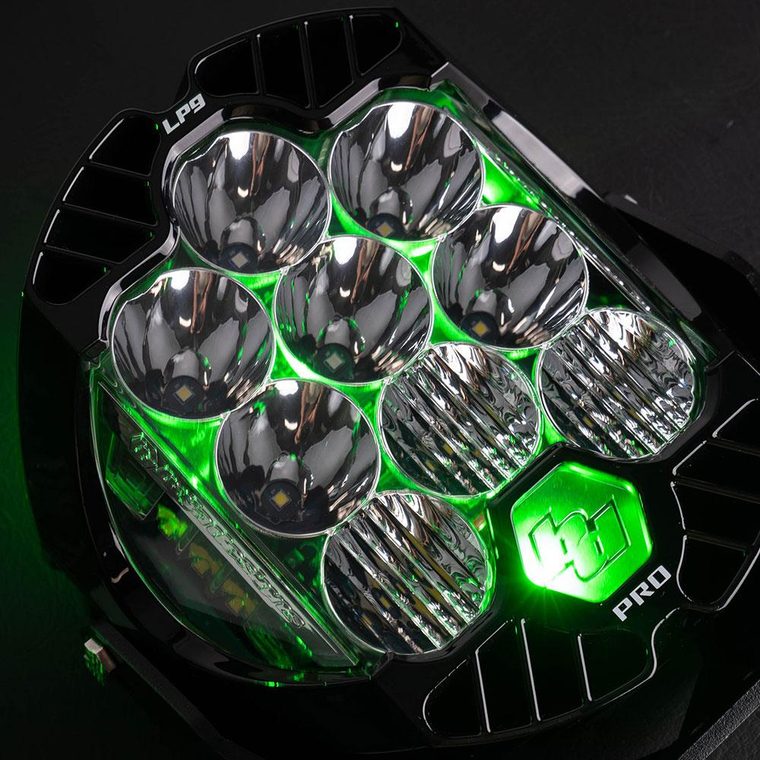

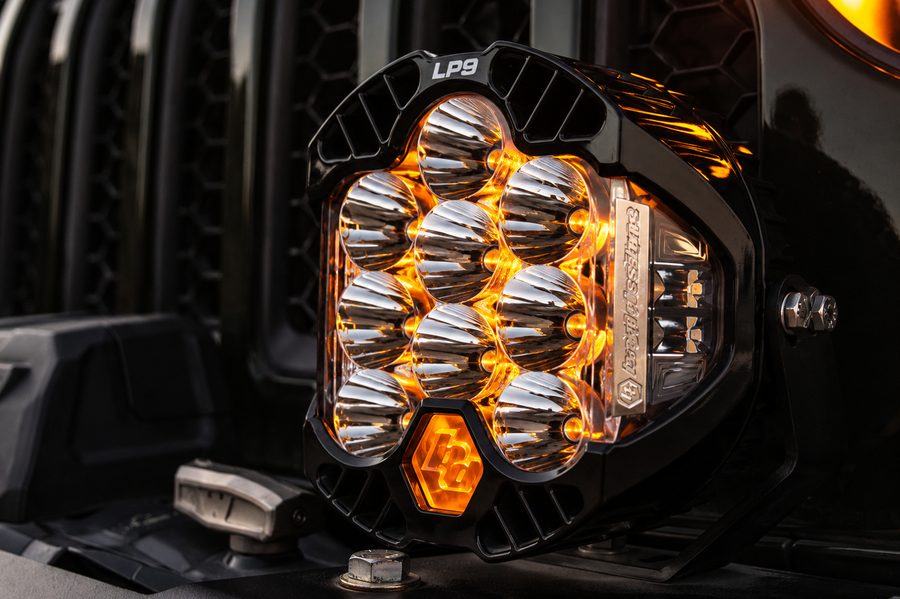

Color Backlight Options

Choose amber, red, blue, or green backlighting to add a distinctive accent when full-output lighting is not needed.

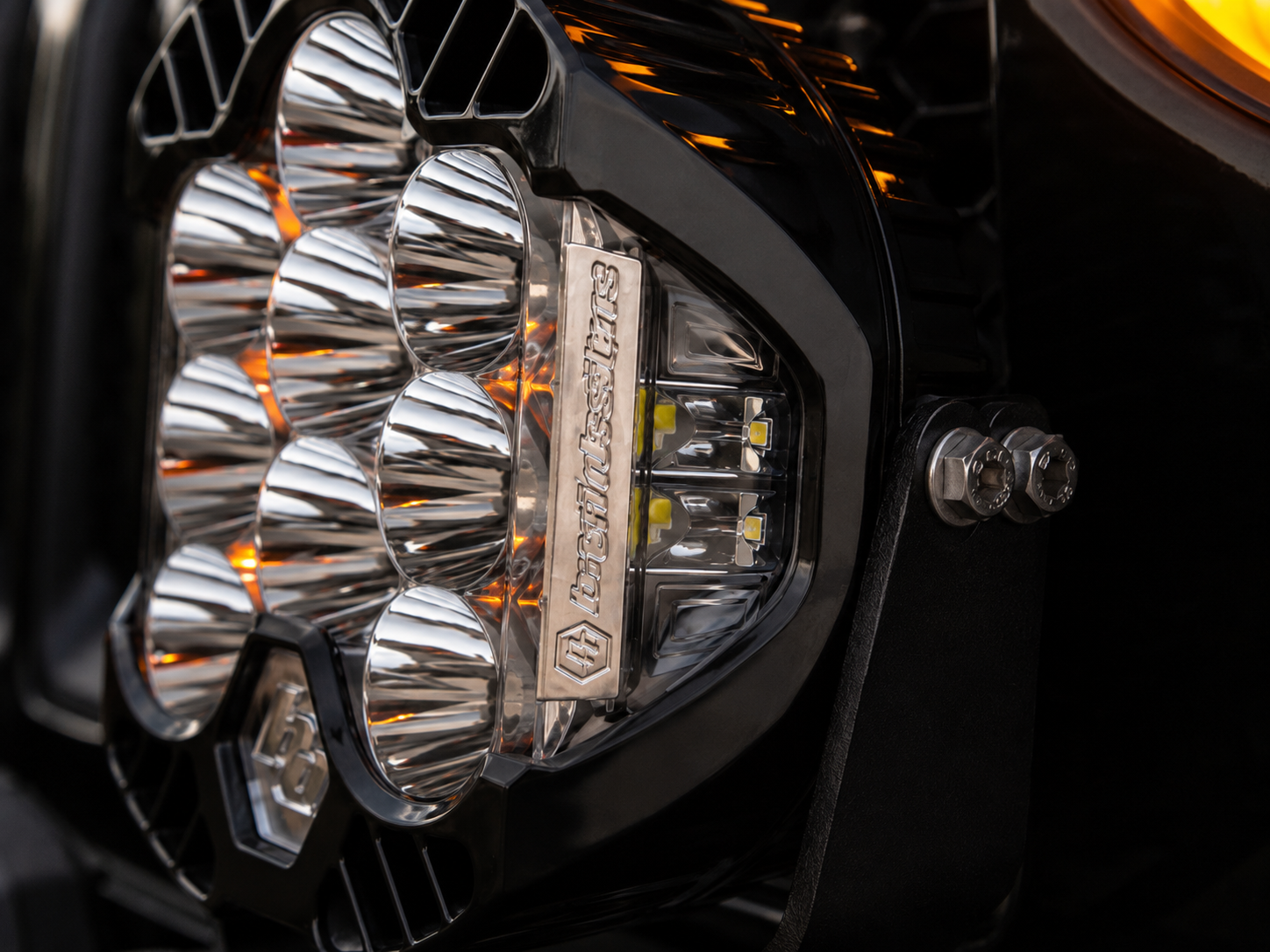

Integrated Peripheral Technology

Dedicated side-facing LEDs create a wide 200-degree spread that improves visibility around turns, trail edges, and nearby obstacles.

Rugged Build

Made for harsh terrain.

Multi-Mode

DRL, low, and high.

Serviceable

Replaceable lenses and optics.

Overview

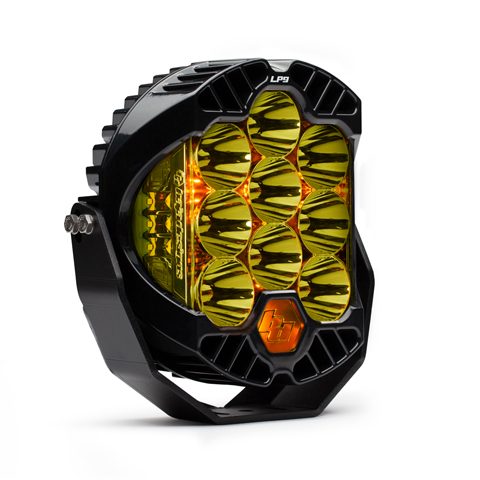

Full-Size Off-Road Power

The Baja Designs LP9 Pro is a full-size auxiliary LED light built for serious nighttime trail use. Nine forward-projecting LEDs provide powerful near- and mid-field illumination, while the bold housing delivers the distinctive, race-inspired appearance of the LP Series.

Beyond its forward output, the LP9 Pro combines high, low, and backlight modes with Integrated Peripheral Technology and Direct Ducted Cooling. This all-in-one design helps drivers see more of the surrounding terrain while maintaining performance through demanding off-road conditions.

See More Of The Trail

Six dedicated IPT LEDs expand the usable light spread to 200 degrees, illuminating trail edges, turns, and surrounding terrain alongside the main forward beam. Choose Driving/Combo for balanced near-field and distance coverage or Spot for a longer, narrower reach down the trail.

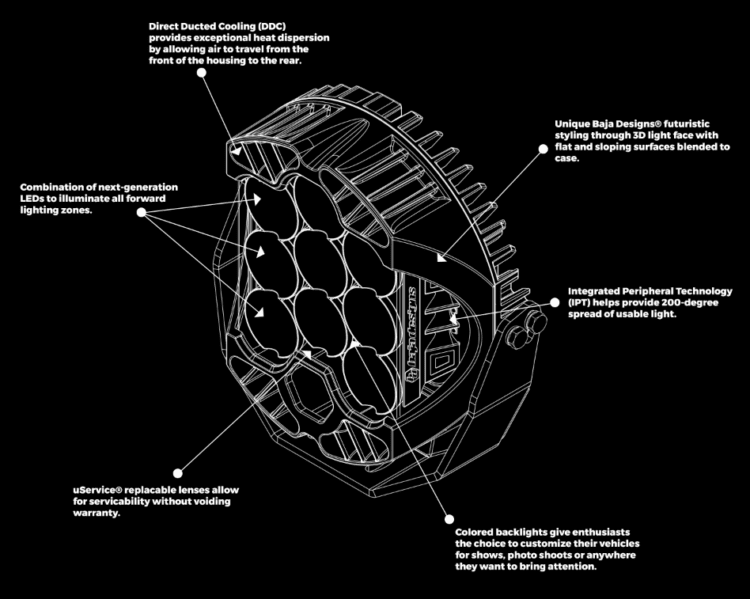

LP9 engineering diagram highlighting Direct Ducted Cooling, Integrated Peripheral Technology, serviceable lenses, and colored backlights.

Engineered From The Inside Out

The LP9 is more than a high-output off-road light—it is engineered as a complete lighting system. From its Direct Ducted Cooling design to its Integrated Peripheral Technology, every element is built to improve usable light, thermal efficiency, and long-term durability in demanding conditions.

Inside, the LP9 combines next-generation forward-projecting LEDs with a dedicated peripheral lighting zone to deliver both distance and side visibility. A serviceable lens design helps support long-term ownership, while color backlight options add a custom look when the trail is done.

Specs

Performance & Optics

Light Output: 12,547 lumens
Power Draw: 124.2 watts at 9 amps
Lighting Modes: High beam, low beam, and daytime-running backlight
Forward Lighting: Nine LEDs
Peripheral Lighting: Six Integrated Peripheral Technology LEDs
Peripheral Output: 2,302 lumens at 21 watts
Light Spread: Up to 200 degrees with Integrated Peripheral Technology
Beam Patterns: Spot or Driving/Combo
Lens Colors: Clear or Baja Amber
Backlight Colors: Amber, red, blue, or green
Color Temperature: 5000K

Construction & Installation

Product Type: Universal LED auxiliary light pod
Lens Material: Hard-coated polycarbonate
Housing: Powder-coated cast aluminum
Mounting Hardware: Stainless steel hardware included
Connector: DT06-4S Deutsch connector
Dimensions: 8 inches tall x 8 inches wide x 3.25 inches deep
Weight: 6.5 pounds
Water Resistance: IP69K rated
Impact Resistance: IK10 compliant
Wiring Harness: Sold separately

Warranty

Limited Lifetime Warrantyor 49,930 hours of operation, whichever comes first

Coverage

Baja Designs recreational automotive and off-road auxiliary lights are covered by a limited lifetime warranty or 49,930 hours of operation, whichever comes first. Warranty eligibility is limited to the original owner and requires proof of purchase or proof of product registration. Coverage applies to qualifying defects in product design or manufacturing.

Exclusions & Claims

Warranty coverage does not include installation errors, ordinary wear and tear, misuse, abuse, neglect, accidents, collision damage, unauthorized modifications, or configurations not completed by Baja Designs or an authorized party. Warranty claims require approval and a Return Merchandise Authorization before the product is returned, and installation labor is not covered.

Recommended Accessories

Baja Designs LP9 Single Rock Guard mounted on an LP9 light

Protect your LP9 lens from trail debrisLP9 Single Rock GuardFrom $30.95Shop Now

Refresh or change your LP9 lens setupLP9 Light Pod Lens KitFrom $44.95Shop Now

Baja Designs LP6 LP9 Pro 2-Light Max Wiring Harness

Power and switch a pair of LP9 Pro lightsLP6/LP9 Pro 2-Light Max Wiring HarnessFrom $97.95Shop Now

Baja Designs LP6 LP9 Upfitter Lock-Out Wiring Harness

Integrate LP9 lights with upfitter controlsLP6/LP9 Upfitter Lock-Out Wiring HarnessFrom $97.95Shop Now

Reviews

Frequently Asked Questions

What is the difference between the Spot and Driving/Combo patterns?

The Spot pattern uses a focused 8-degree beam to project light farther down the trail. The Driving/Combo pattern blends 8-degree spot optics with 42-degree driving optics, providing a smoother combination of distance and near-field trail coverage.

What does Integrated Peripheral Technology do?

Integrated Peripheral Technology uses six side-facing LEDs to create a wide, 200-degree spread of usable light. This helps illuminate corners, trail edges, and nearby terrain beyond the main forward-facing beam.

Does the LP9 Pro include a wiring harness?

A wiring harness is not included with the individual LP9 Pro light pod. Baja Designs recommends its LP9 Pro wiring harness for safely powering and controlling up to two lights, including their high, low, and backlight functions.

Can the lens or beam pattern be changed?

Yes. Baja Designs uService technology allows customers to replace damaged lenses or change the lens color and optical pattern without replacing the complete light. The housing must be correctly reassembled and sealed according to the supplied service instructions.

Which backlight colors are available?

The LP9 Pro is offered with amber, red, blue, or green backlighting. Red, blue, and green backlights are intended for exhibition use only and should not be operated on public roads.

Is the LP9 Pro vehicle-specific?

The individual LP9 Pro pod is a universal light. Installation requires a suitable mounting location, compatible brackets or hardware, and the correct wiring solution for the vehicle and desired lighting functions.
