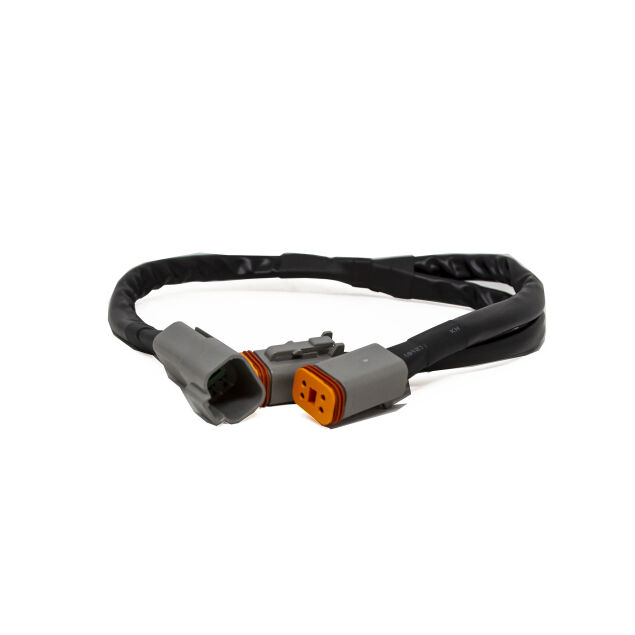

Baja Designs LP4/LP9 4-Light Splitter Harness



Baja Designs LP4/LP9 4-Light Splitter Harness provides a prepared branch connection for supported four-light LP installations. It is designed for customers adding lights to a compatible existing Baja Designs harness while keeping the connector layout pinned, sheathed, and ready for integration. The splitter supports four LP4 lights or four LP9 Sport lights with identified compatible main harnesses.

Expanding a large-format lighting system requires more than adding connectors because the total electrical load must remain within the main harness, relay, fuse, switch, and power-supply capacity. This splitter gives the physical branch arrangement, but customers still need to verify that the complete circuit is approved for the selected lights. Correct planning helps prevent excessive current draw and unreliable operation.

The harness is intended for four LP4 lights when paired with compatible main harnesses, and it also supports four LP9 Sport lights in the identified arrangement. It does not support adding a third LP6 Pro or LP9 Pro to the referenced two-light Pro harnesses. That distinction is important because Sport and Pro lights can have different electrical demands.

Pre-pinned connectors reduce the time and specialized tools needed to build an additional pair of LP branches. Protective sheathing helps keep the expanded wiring organized along a bumper, grille, roof rack, or custom light mount. The splitter does not replace the need for careful routing, strain relief, and protected connector placement.

A four-light LP layout can provide broad front coverage, a balanced bumper arrangement, or a combination of forward and cornering zones depending on the selected optics. The splitter simply supports the compatible electrical distribution; beam pattern and light placement should be planned around the intended use. Customers should test the complete system at full output before finalizing the installation.

Whether customers are building a four-light LP4 array or a supported LP9 Sport arrangement, the Baja Designs LP4/LP9 4-Light Splitter Harness delivers a clean expansion path for a compatible main harness. Now Available at LEER!



---



Features & Specifications

Product Type: Four-light splitter wiring harness

Brand: Baja Designs

Compatible Lights: LP4 and LP9 Sport

Maximum Light Count: Four supported lights

Harness Construction: Pinned and sheathed

Switch Included: No

Functionality:

• Expands a compatible LP main harness to a supported four-light layout
• Supports four LP4 lights with the identified main harness arrangement
• Supports four LP9 Sport lights with the identified main harness arrangement
• Provides pre-pinned connectors for easier system expansion
• Keeps added light branches organized in protective sheathing
• Supports balanced bumper, grille, and roof-light layouts
• Reduces custom splicing when the complete system is electrically compatible



---



Why Choose

This product is ideal for customers who want a prepared splitter for expanding a compatible Baja Designs LP main harness to a supported four-light Sport or LP4 setup.

• Pre-pinned connections reduce custom termination work
• Protective sheathing keeps the expanded branches organized
• Four-light support enables broad and balanced illumination layouts
• Compatibility with LP4 and LP9 Sport covers two distinct lighting formats
• The splitter preserves a purpose-built Baja Designs connector path
• A matched expansion harness is easier to service than improvised branch wiring
• Clear compatibility limits help customers avoid unsupported Pro-light combinations



---



What's Included

• One LP4/LP9 Sport four-light splitter harness

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the main harness is compatible with the planned four-light LP4 or LP9 Sport arrangement.
• Do not use the splitter to add a third LP6 Pro or LP9 Pro to an unsupported Pro-light harness.
• Calculate the complete lighting load and verify fuse, relay, switch, wire, and power-system capacity before operation.
• Secure all branches with strain relief and keep connectors away from heat, sharp edges, and direct impact zones.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage is handled under Baja Designs terms for the purchased component. Coverage generally applies to defects in materials or workmanship and may require proof of purchase, product inspection, and return authorization before a claim is completed.

Coverage typically excludes improper installation, incorrect wiring, misuse, unauthorized modification, overloading, tampering, impact damage, corrosion caused by unsuitable installation practices, and use outside the component's intended application.
