Baja Designs Fuse Tap Kit gives customers a practical way to create a switched trigger connection from an existing vehicle fuse circuit. The kit is intended for auxiliary lighting and accessory wiring where a low-current signal is needed to activate a relay or control circuit. Its universal format supports organized electrical upgrades on trucks, SUVs, UTVs, and other 12-volt applications.
Four common fuse tap styles help accommodate several fuse formats found in modern automotive panels. This makes the kit useful when a lighting harness needs keyed power, high-beam activation, or another switched signal without building a custom tap from separate electrical pieces. Bullet connectors provide a straightforward interface with compatible Baja Designs wiring components.

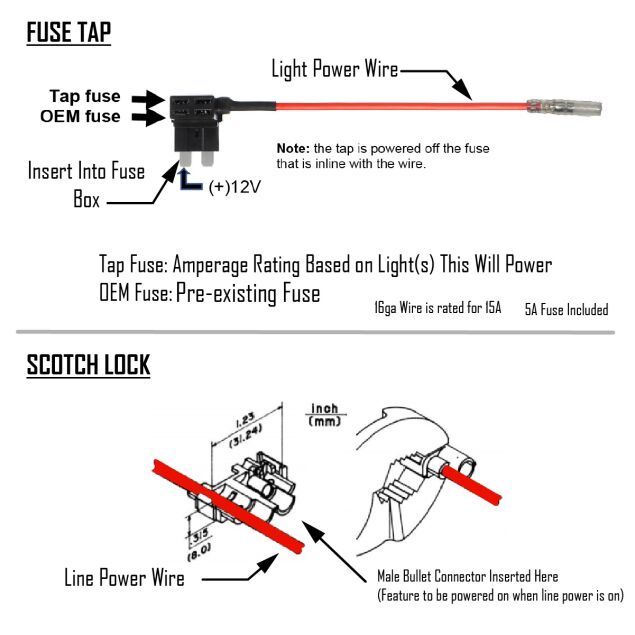

The fuse tap should be used as a trigger rather than as the main power feed for an auxiliary light. Keeping the lamp load on a properly fused relay circuit helps protect the original vehicle circuit and reduces the chance of overloading the selected fuse position. The result is a cleaner separation between factory electrical functions and added lighting power.
A fuse-panel trigger can support installations that need the accessory to follow ignition power or another vehicle-controlled function. Customers can use the kit to simplify backlight activation, relay control, or other low-current switching tasks when the selected circuit is appropriate. Careful circuit identification remains essential because vehicle fuse assignments and available capacity vary.
The compact components are easier to route and service than a permanent splice when the fuse panel is accessible. Properly secured wiring helps maintain a tidy installation and reduces strain on the fuse tap, connector, and surrounding factory wiring. The universal kit also gives installers flexibility to choose the fuse tap that best matches the vehicle's fuse style.
Whether customers are adding auxiliary lights, backlighting, or a relay-triggered accessory, the Baja Designs Fuse Tap Kit delivers a convenient path to a clean switched signal. Now Available at LEER!
Features & Specifications
Product Type: Fuse tap wiring harness kit
Brand: Baja Designs
Fitment: Universal 12-volt accessory wiring
Connector Type: Bullet connectors
Fuse Tap Quantity: Four common fuse tap styles
Switch Included: No
Functionality:
- Creates a low-current trigger connection from an appropriate fused circuit
- Supports relay-controlled auxiliary lighting and accessory installations
- Provides multiple fuse tap styles for common automotive fuse panels
- Helps separate accessory power load from the original trigger circuit
- Works with compatible bullet-connector wiring components
- Supports keyed-power, lighting-trigger, and backlight activation strategies
- Keeps service access concentrated near the vehicle fuse panel
Why Choose
This product is ideal for customers who want a compact and organized way to obtain a switched trigger signal for an auxiliary electrical system.
- Four tap styles reduce the need to source separate fuse adapters
- A relay-trigger approach helps protect the selected factory circuit from the full accessory load
- Bullet connectors simplify connection to compatible wiring components
- Universal use supports a wide range of truck, SUV, UTV, and equipment installations
- Compact components help maintain a clean fuse-panel area
- The kit supports removable service connections instead of a permanent direct splice
- Clear trigger-only use helps customers plan a safer accessory circuit
What's Included

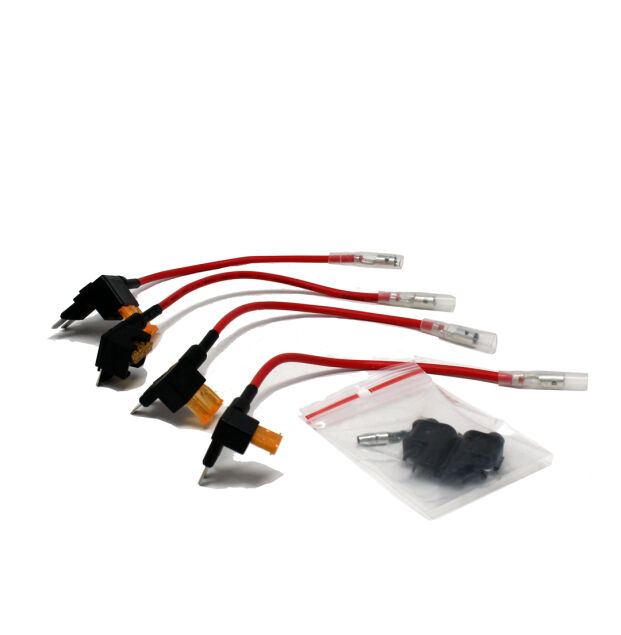

- Four fuse tap connections for common automotive fuse formats
- Trigger wiring with bullet-connector interface
Note: Confirm included components before installation.
Installation Notes
- Confirm the selected fuse position is appropriate for a trigger signal and is not a safety-critical circuit.
- Use the tap only as a low-current trigger; route the accessory load through a correctly sized fused relay or control module.
- Secure the wiring away from sharp edges, heat, moving parts, and areas where the fuse-panel cover could pinch the lead.
- Verify polarity, circuit behavior, and fuse-panel clearance before final assembly.
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Warranty coverage is handled under Baja Designs terms for the purchased component. Coverage generally applies to defects in materials or workmanship and may require proof of purchase, product inspection, and return authorization before a claim is completed.
Coverage typically excludes improper installation, incorrect wiring, misuse, unauthorized modification, overloading, tampering, impact damage, corrosion caused by unsuitable installation practices, and use outside the component's intended application.
