Baja Designs 9XL Linkable Roof Bar Kit

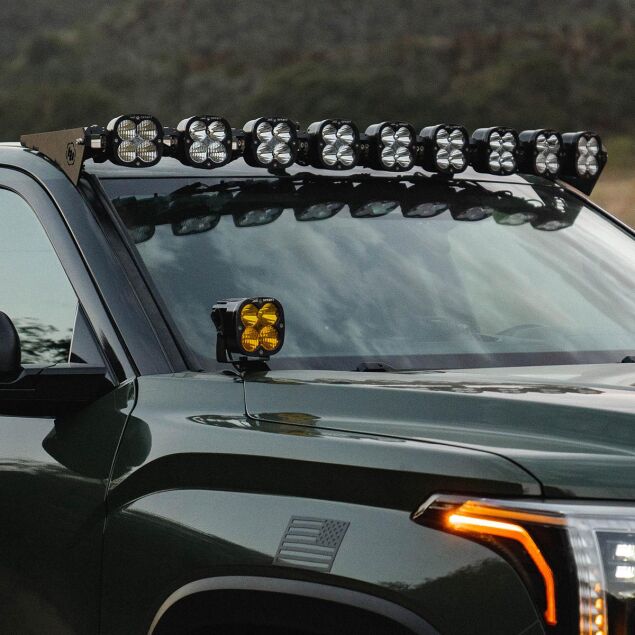

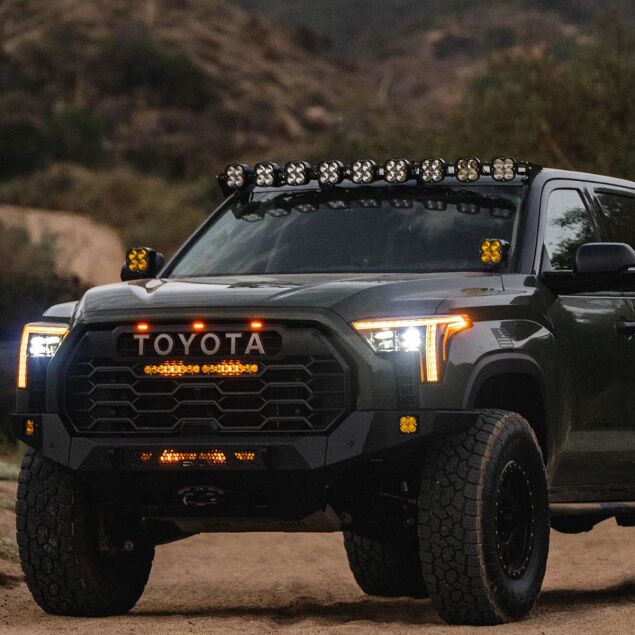

The Baja Designs 9XL Linkable Roof Bar Kit is built for full-size pickup owners who need a wide, high-output lighting package above the windshield. Nine XL lights span the roofline to place forward illumination high on the vehicle, helping drivers see farther across open terrain and uneven trails. The linked-pod design gives an overland or desert build a purposeful profile while preserving individual aiming control.

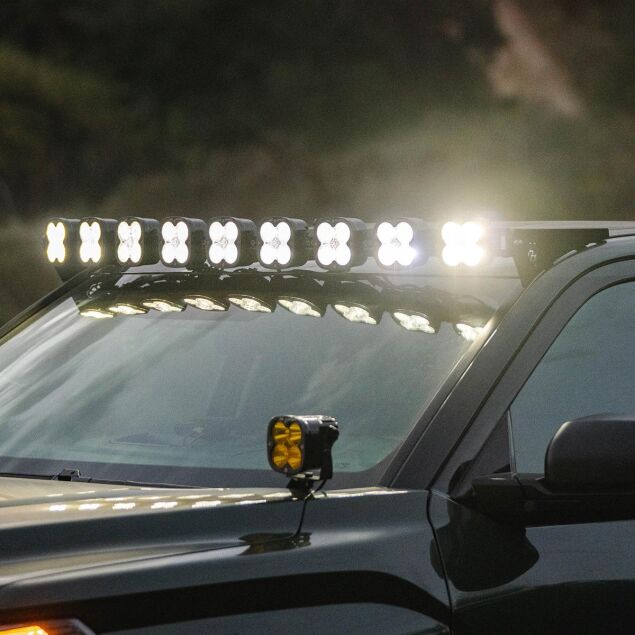

The assembly produces 28,458 raw lumens through a coordinated mix of Spot, Driving/Combo, and Wide Cornering optics. That blend reaches downrange while also filling the middle and outer portions of the driver's view, reducing the tunnel effect that can occur with a narrow long-distance beam. It is especially useful on dark backroads, desert routes, wide trails, and approaches where terrain changes quickly.

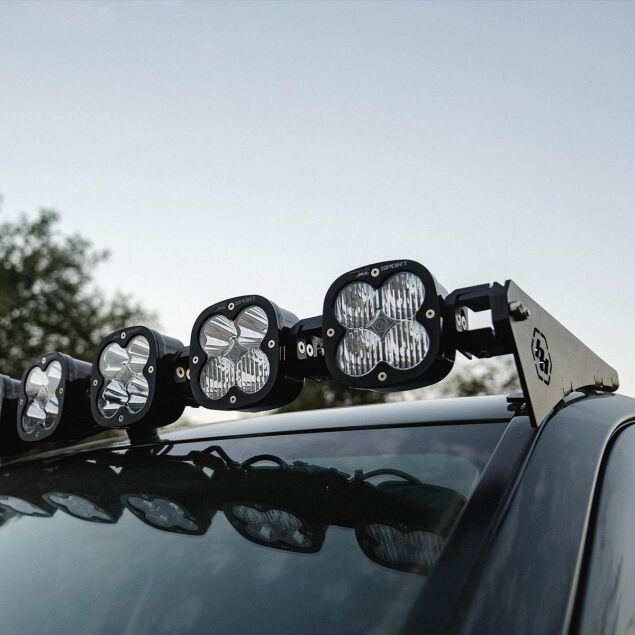

XL Linkable construction allows the physical shape and light direction to be tuned after mounting. Each lamp can be aimed horizontally, and the assembly supports up to 45 degrees of vertical pitch adjustment. The row can sit straight or follow a gentle arc, helping the lights match the roofline and direct useful output where the driving environment demands it.

The nine-light arrangement is supported by roof brackets, pre-load hardware, black rock guards, a dedicated harness, and a wire hider. These components help create a more finished result than combining universal parts from separate systems. The black guards also protect the lenses and create a uniform dark appearance when the lights are covered.

Roof mounting requires thoughtful preparation because this kit uses drilled front mounting points and is not compatible with a roof rack. Customers should confirm the cab, trim, roof accessories, and planned wiring path before work begins. Careful sealing, harness routing, and final aiming are important for a durable installation and controlled beam placement.

Whether customers are upgrading for overlanding, desert travel, trail driving, campsite access, or broad nighttime visibility, the Baja Designs 9XL Linkable Roof Bar Kit delivers expansive roof-mounted coverage with precise linked-light adjustment. Now Available at LEER!

Features & Specifications

Product Type: Nine-light linkable roof lighting kit

Brand: Baja Designs

Series: XL Linkable

Vehicle Fitment: 2022-2026 Toyota Tundra

Mounting Location: Roof

Light Quantity: Nine clear-lens XL lights

Beam Blend: Spot, Driving/Combo, and Wide Cornering

Output: 28,458 total raw lumens

Power Draw: 234 watts and 18.0 amps

Adjustment: 45 degrees of vertical pitch with independent horizontal aiming

Functionality:

• Projects light from a high roof-mounted position
• Combines distance, mid-range, and near-field beam coverage
• Supports straight or arced alignment across the roofline
• Allows each light to be aimed horizontally
• Provides vertical pitch adjustment for the complete assembly
• Adds broad illumination for trails, backroads, and open terrain
• Uses black rock guards to protect all nine lights
• Includes a wire hider for a cleaner roof-area installation

Why Choose

This product is ideal for customers who want a wide roof-mounted beam package, adjustable linked-light styling, and strong illumination across several driving zones.

• Nine-light layout provides broad visual coverage
• Mixed optics balance reach with surrounding visibility
• High mounting position helps project light over changing terrain
• Independent aiming supports detailed beam tuning
• Straight or arc positioning helps match the roofline
• Vehicle-specific brackets simplify component matching
• Pre-load hardware supports the long linked assembly
• Included wire-management components help create a finished installation

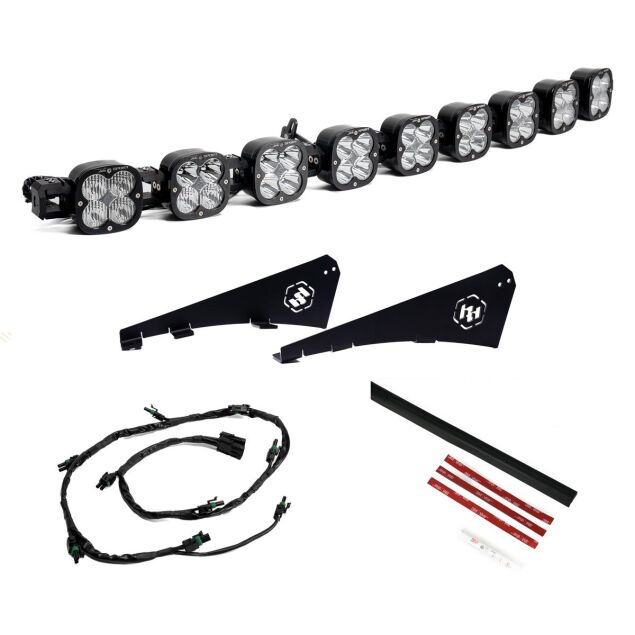

What's Included

• Nine-light XL Linkable assembly with clear lenses
• Pair of vehicle-specific roof mounting brackets
• Dedicated wiring harness
• Wire hider
• Two pre-load support kits
• Nine black rock guards
• Required mounting hardware

Note: Confirm included components before installation.

Installation Notes

• Confirm vehicle year, trim, cab configuration, roof accessories, and absence of a roof rack before installation.
• Drilling is required for the front mounting bolts, so measure carefully and protect drilled openings against water intrusion and corrosion.
• Route and secure the harness and wire hider away from sharp edges, pinch points, airbags, and moving components.
• Set the straight or arc alignment, aim the beam responsibly, and recheck all fasteners after initial use.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

Baja Designs lighting products are supported by a 30-Day Satisfaction Guarantee and a Limited Lifetime Warranty for qualifying defects.

Coverage typically does not apply to improper installation, unsealed drilled openings, misuse, modifications, wiring faults, impact damage outside the warranty terms, or non-compliant operation. Proof of purchase may be required.
